Delta tower not working

color_prepress

Active member
My CTF is herkules Pro.
I using delta tower with delta rip 8 on windows 2000.
All work well until last week the delta tower got error message come out.
Delta Tower:error during delta tower configuration.

At start we found out is scsi harddisk problem in delta tower, so we had order a same model scsi harddisk(set the jumper correctly follow previous one) to replace it. (We even doing low level format on it and it able to format so can confirm that the harddisk is ok)
After that we though it should be able to run but after tried, it still failed.

We had tried so many things but problem still exist. Here is the sequence that we tried.

At first replace same model of scsi harddisk into tower.
After that we manage to get another delta tower from other people to tried but still fail.
Then we tried switching another scsi cable that connecting delta tower to server.
We had also tried switching another scsi card in the server that connecting server and tower.

All fail.

So any of you got any suggestion/opinion to fix it?

May be you can try to reinstall delta software step by step below.
1.turn on ctf and load film to make it ready.
2.turn on delta tower and computer.
3.install delta software.

Wish you luck.

May be you can try to reinstall delta software step by step below.
1.turn on ctf and load film to make it ready.
2.turn on delta tower and computer.
3.install delta software.

Wish you luck.

Do you had any installation manual? (A detail one)
Last time it is installed by other people and now we not able to contact that person.
We got the software in hand but I remember when he install, it need to setup a lot of thing. (something like tricking the system to think delta is another PC in network, set something for the scsi harddisk in delta tower in win2000 so that it will though it is normal storage for win2000 and so on....)

I need the step on how to setup after install.

Just look in c:\delta\docu folder in your PC. install document should be in install folder. When run install delta technology software select backup of your delta technology configurations. After that you can try to update software.

Just look in c:\delta\docu folder in your PC. install document should be in install folder. When run install delta technology software select backup of your delta technology configurations. After that you can try to update software.

Just to let you know these are the event and error code that show out. (I not reinstall yet)
With these code, do you think is the software problem?

Event list show that "delta tower could not be started! (RB_RC_ErrMax Repeat!)

At application event log, it got RecCtrlNT

It also got this in event log "The device, \Device\Rasterbox0, is not ready for access yet. "

Below are another 7 error in event log.
Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 7, release pipes failed.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 6, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 5, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 4, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 3, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 2, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 1, open pipe with number.

Just to let you know these are the event and error code that show out. (I not reinstall yet)
With these code, do you think is the software problem?

Event list show that "delta tower could not be started! (RB_RC_ErrMax Repeat!)

At application event log, it got RecCtrlNT

It also got this in event log "The device, \Device\Rasterbox0, is not ready for access yet. "

Below are another 7 error in event log.
Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 7, release pipes failed.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 6, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 5, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 4, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 3, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 2, open pipe with number.

Event ID ( 0 ) in Source ( RecCtrlNT ) cannot be found. The local computer may not have the necessary registry information or message DLL files to display messages from a remote computer. The following information is part of the event: Service error : 1, open pipe with number.

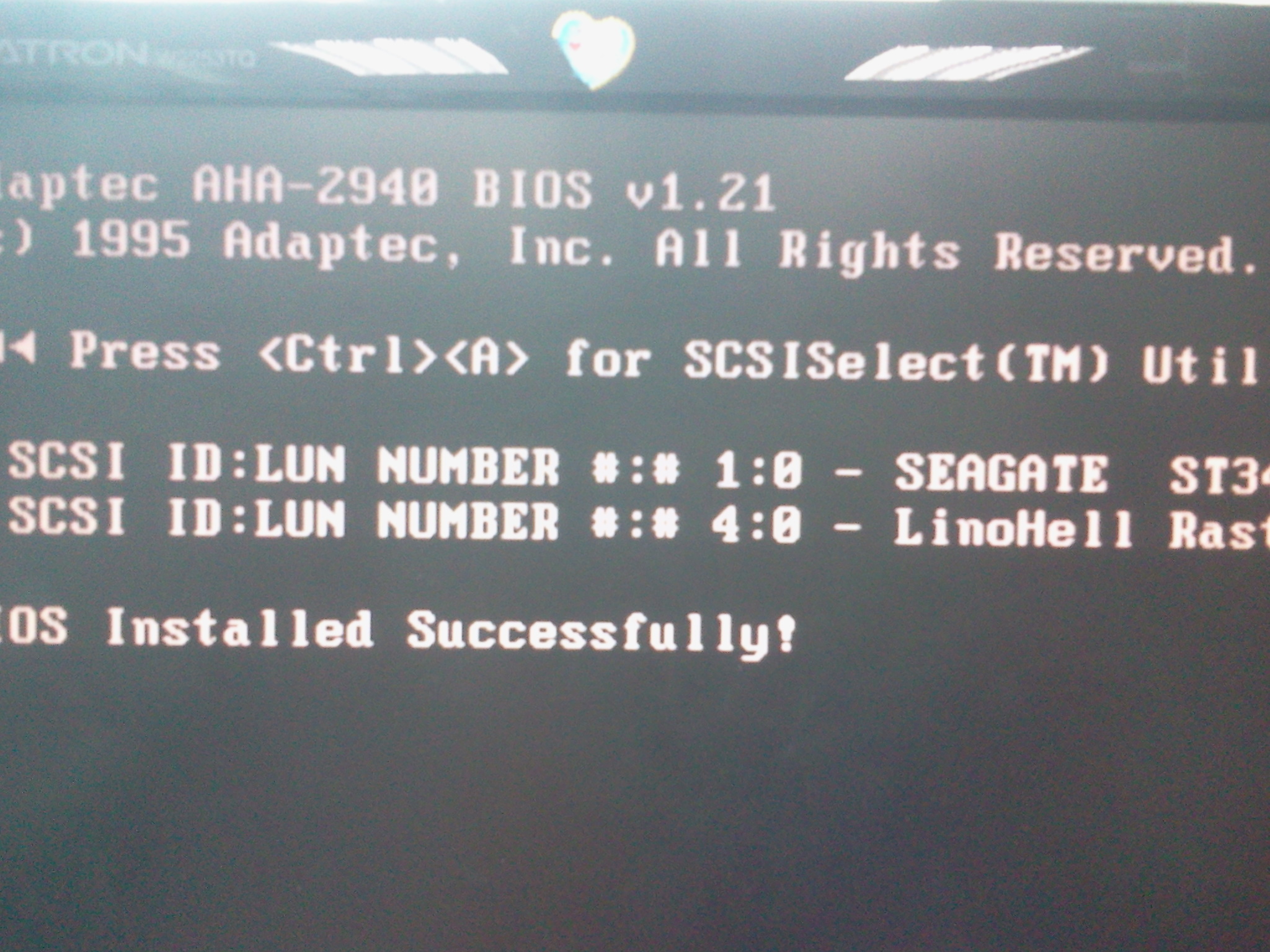

Can you see this two SCSI number when the computer boot up.If not then you have hardware problem.ID 1 is harddisk , ID4 is the board in delta tower.If your hardware is O.K. then you should try to install software.


Attachments

  • delta-boot.jpg
    818.8 KB · Views: 218
