Plockmatic 350m skew

Dan2122

Active member
Hi everyone! Hope you're all well!
We have a 2017 plockmatic 350m which we use to hand finish booklets.

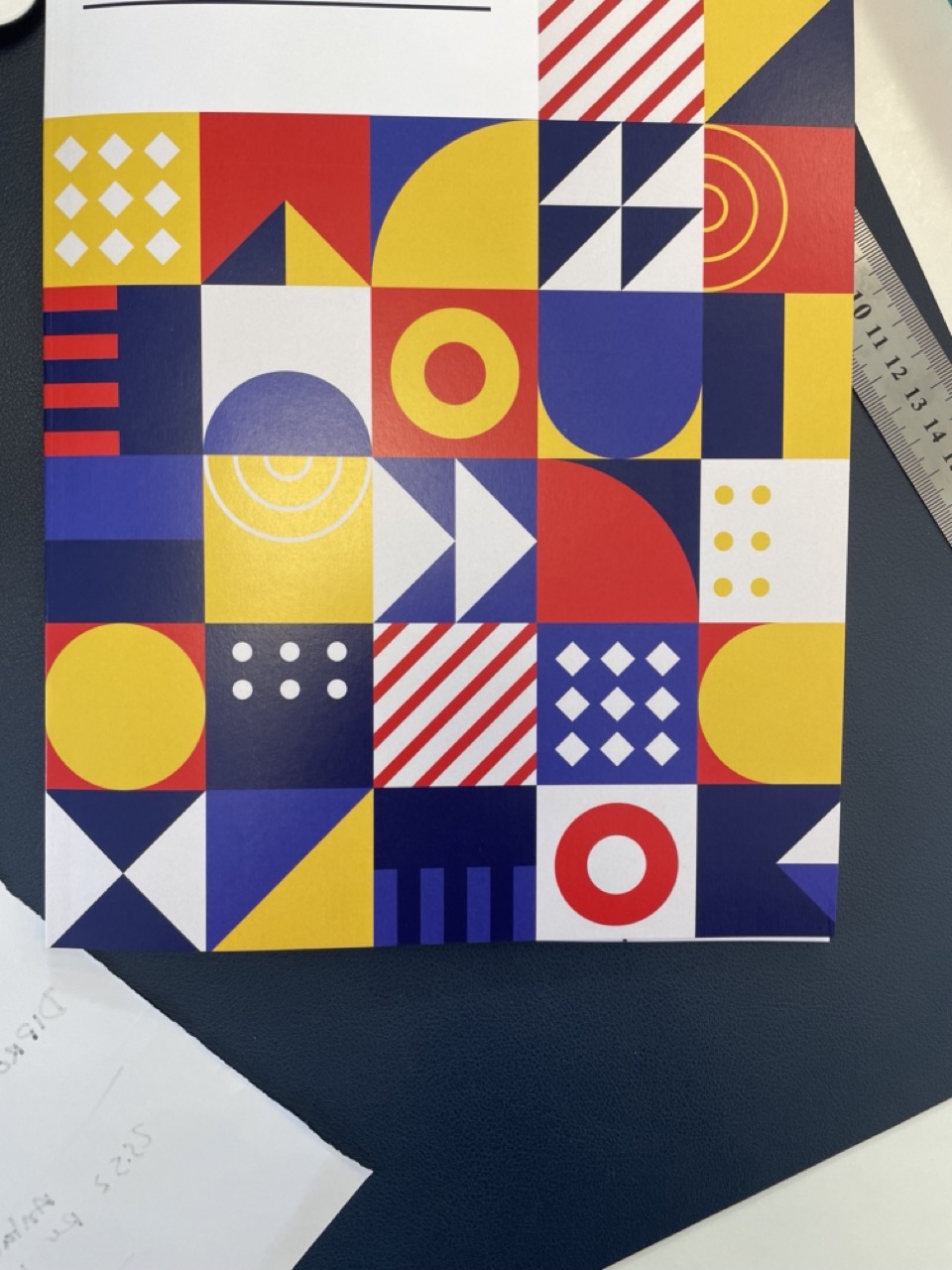

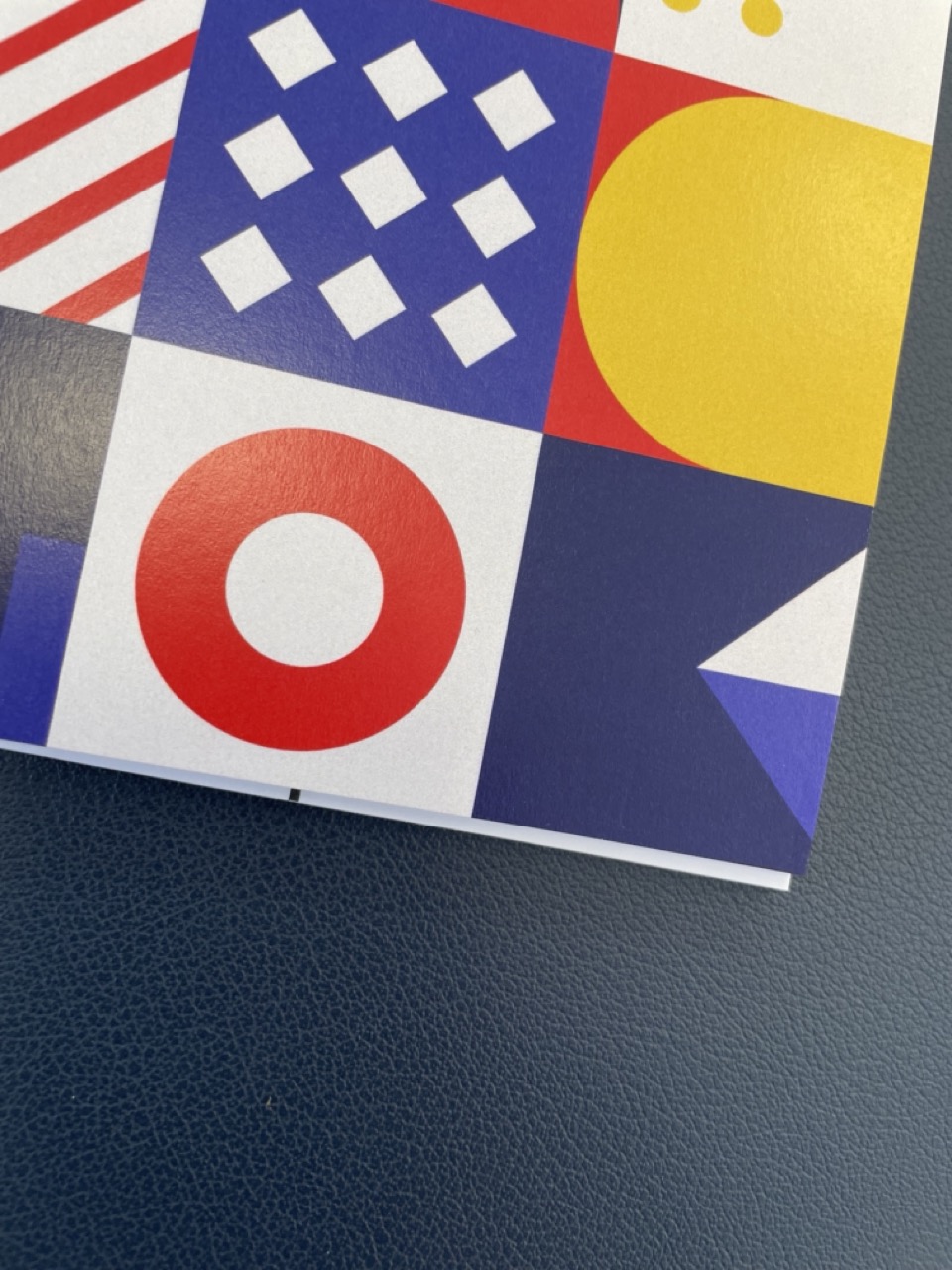

We're really happy with the machine apart from I'm getting a small skew on the books. (Photo attached).
I've searched google for answers and checked all the obvious settings such as paper size etc.



Has anyone come across anything like this before? Any suggestions on how I can fix it.

Or alternatively, does anyone know a technician who covers the north of England?

Thanks in advance.
Dan


Attachments

  • IMG_1242 Large.jpeg
    IMG_1242 Large.jpeg
    225.4 KB · Views: 67
  • IMG_1243 Large.jpeg
    IMG_1243 Large.jpeg
    270.8 KB · Views: 69

chriscozi

Well-known member
There is an 'operator' adjustment for both the head-foot skew and the fold skew.
See if I can get you photos. . . . .


chriscozi

Well-known member
There is an 'operator' adjustment for both the head-foot skew and the fold skew.
See if I can get you photos. . . . .

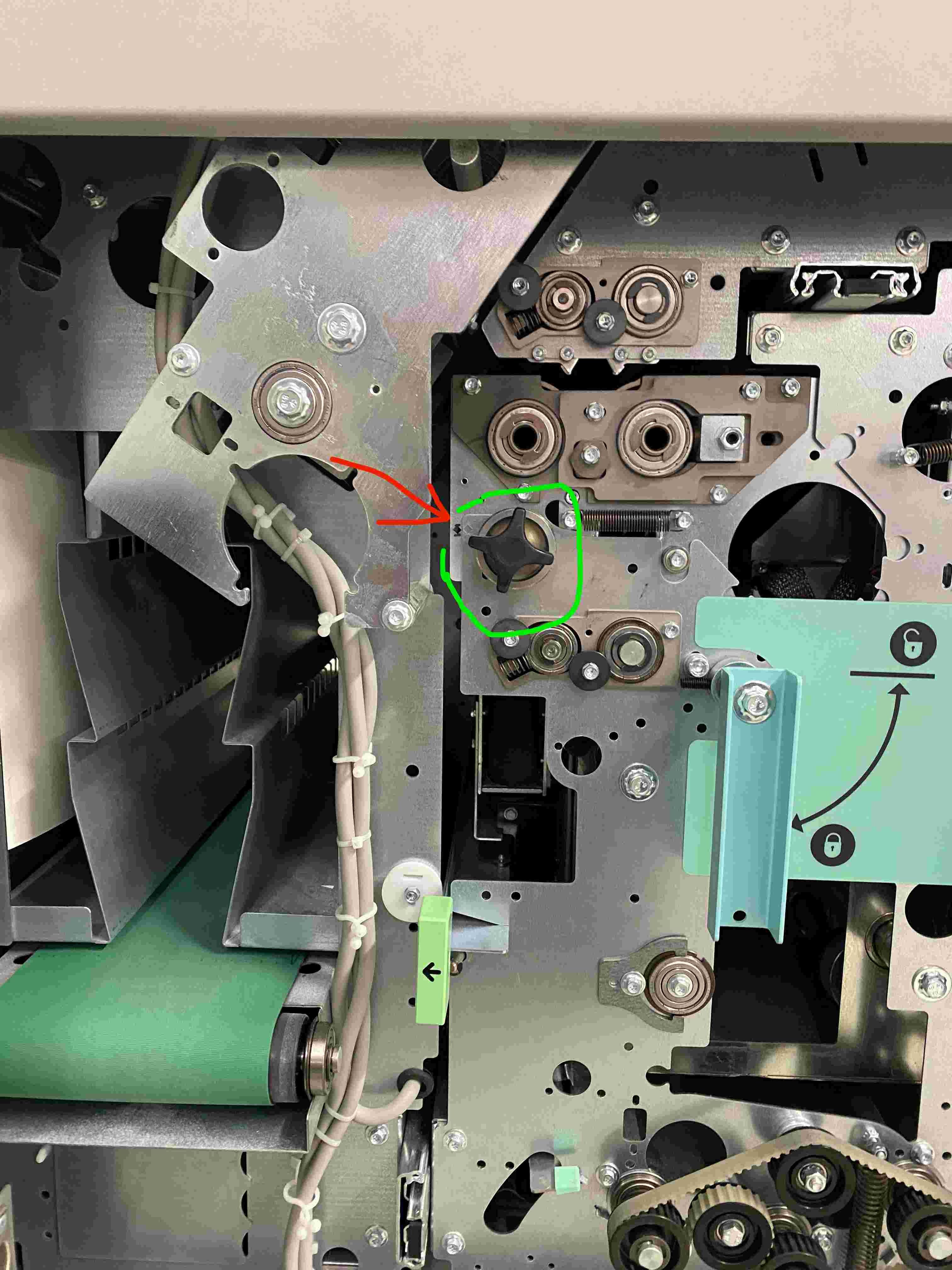

Photo1 - The green-circled knob needs to be loosened to allow for the red-arrowed indicator to adjust.

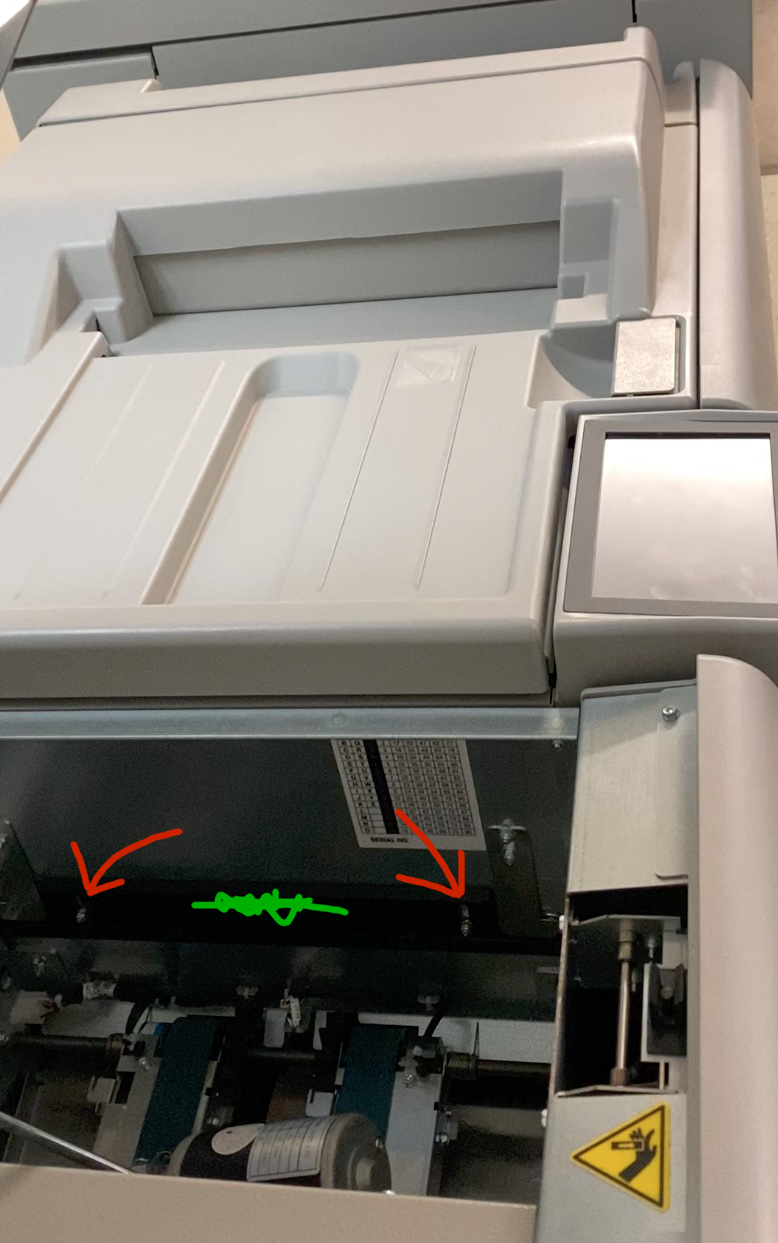

Photo2 - Loosen the two red arrow indicated screws to lower the green-indicated black 'capture' plate to split the stitch and fold units. (Reverse the process to reattach the two units)

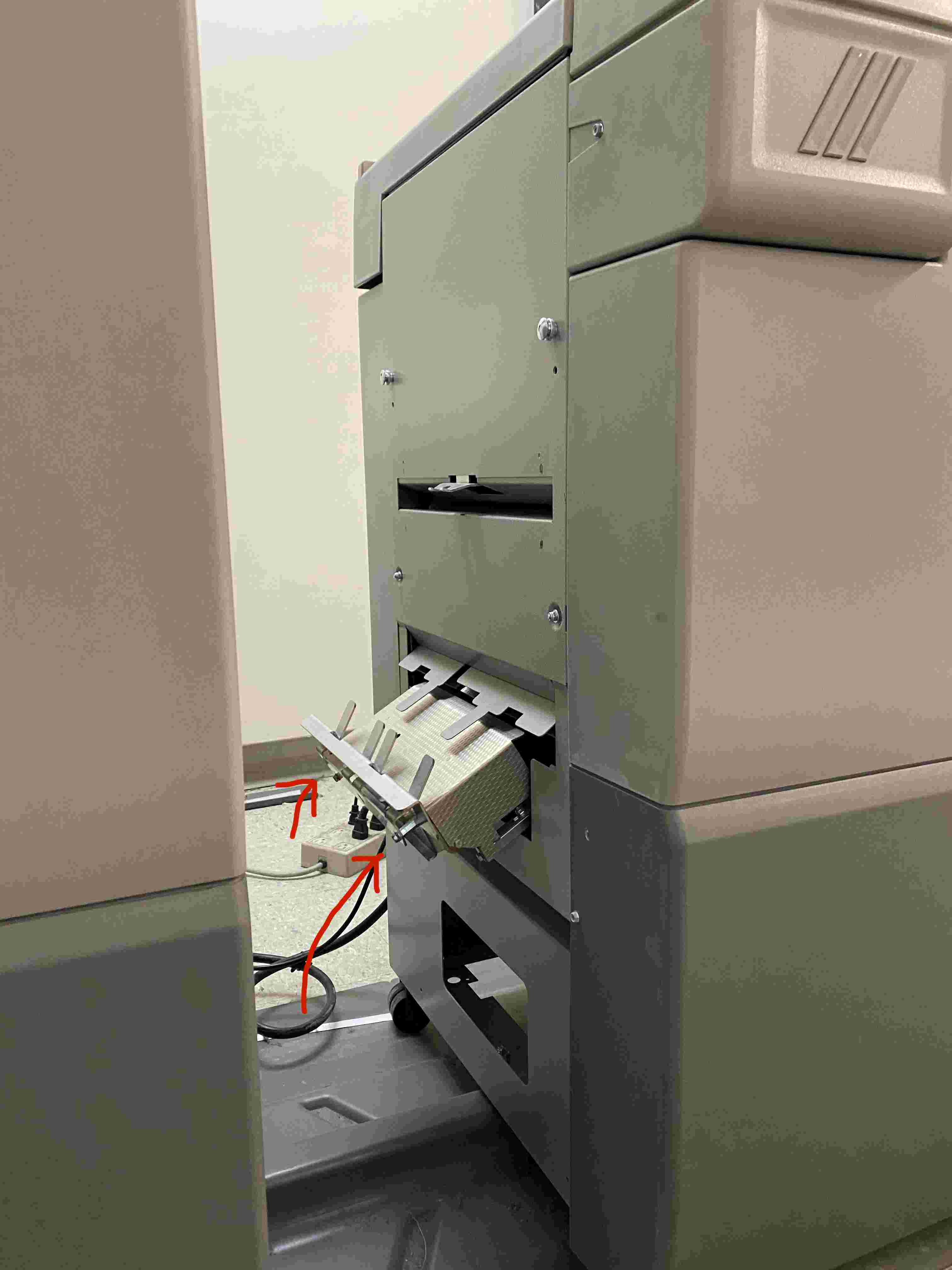

Photo3 - Red-arrow indicated screws adjust the stitch-fold skew.
YMMV.
;-)


Attachments

  • Photo1-HeadFootTrimSkew.jpg
    222.5 KB · Views: 73
  • Photo2-SplitUnits.jpg
    414.5 KB · Views: 74
  • Photo3-FoldStopSkewAdjustment.jpg
    120.3 KB · Views: 75

Dan2122

Active member
Im obviously being completely dim. But I can't find photo 1 anywhere on my unit. I've had all the covers off. But nothing.

We had this happen to us once. We found a piece of scrap torn off paper at the bottom of the jogging area. It caused a slight skew when we dropped in booklets. Check the path and see if there's any torn paper stuck in the path.
