Primesetter 74 -- Problem with punches

chugo

Member
Hello everyone!

I have problem with punches in Primesetter 74.

The Primesetter prints well, but in NT Utility I have lost buttons turn on/of punches.

I tried to restart in DIAG mode and test punches. Punches worked well.
I have no idea what is going are and how to solve problem.

--------
I have this parameters in "Parameter editor"

Punch Action = 0
Punch Advance P0...P11 = 20 or 30
Punch Link P0...P11 = 0
Punch Shape P0...P11 = 0

Could you explain me what are they for, and how it correct?

Punch Configuration = 16 (I think this parameter is correct, because when i tried to change value and restart the Primesetter it's goes to error)

thanks a lot!


Attachments

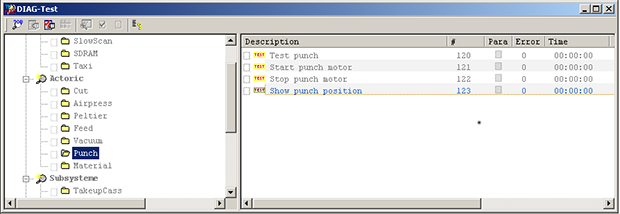

  • DIAG PRIMESETTER.png
    DIAG PRIMESETTER.png
    47.3 KB · Views: 192
  • DIAG PRIMESETTER.txt
    339 bytes · Views: 180
  • Punch Config.zip
    144.4 KB · Views: 197
Last edited:
PS74 Punches

PS74 Punches

Hi,

not only the punch link is important, but also the parameters which describe the position of each punch needle. Find a sample data sheet of another PS74 attached. Also check the parameter "Use Punch", if I am right it should be PID 528

Good luck



Hello everyone!

I have problem with punches in Primesetter 74.

The Primesetter prints well, but in NT Utility I have lost buttons turn on/of punches.

I tried to restart in DIAG mode and test punches. Punches worked well.
I have no idea what is going are and how to solve problem.

--------
I have this parameters in "Parameter editor"

Punch Action = 0
Punch Advance P0...P11 = 20 or 30
Punch Link P0...P11 = 0
Punch Shape P0...P11 = 0

Could you explain me what are they for, and how it correct?

Punch Configuration = 16 (I think this parameter is correct, because when i tried to change value and restart the Primesetter it's goes to error)

thanks a lot!


Attachments

  • PS74_PID_1.pdf
    225.8 KB · Views: 210
Hi,

not only the punch link is important, but also the parameters which describe the position of each punch needle. Find a sample data sheet of another PS74 attached. Also check the parameter "Use Punch", if I am right it should be PID 528

Good luck

Thank you for that...

I solve the problem to add values in parameters
Punch link 5,6,7 = 16

FS2P5,FS2P6,FS2P7 = 6650

SS2P5 = 159100
SS2P6 = 375000
SS2P7 = 590900

Regards
