AGFA Avalon VLF parts

P

Phanx11

Active member
Selling Agfa Avalon VLF micro chassis PCB's, power supplies, motion chassis drives and more.

All taken from working unit, tested before decommissioning.

List of parts:

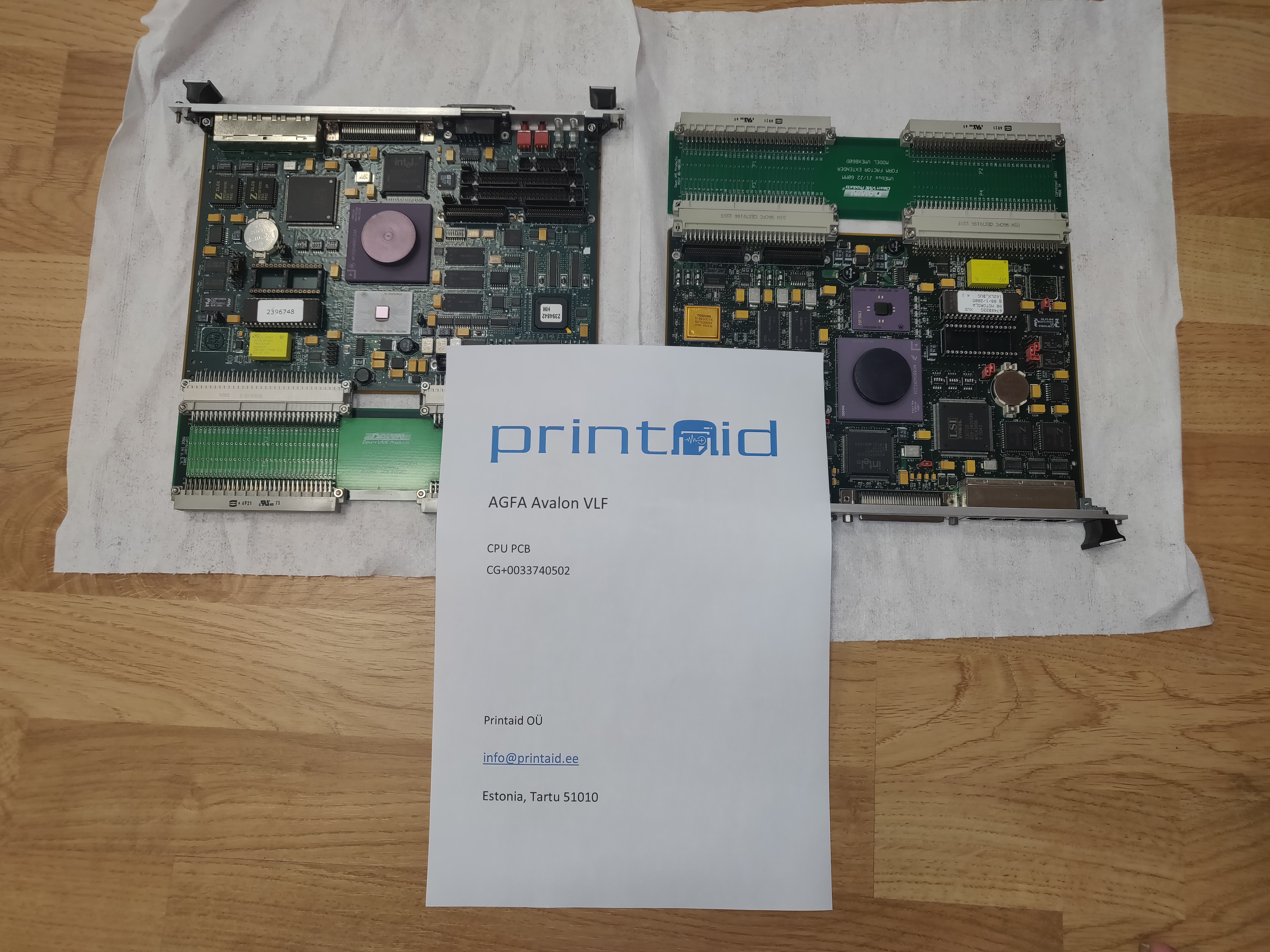

* CPU PCB (2pcs.) CG+0033740502

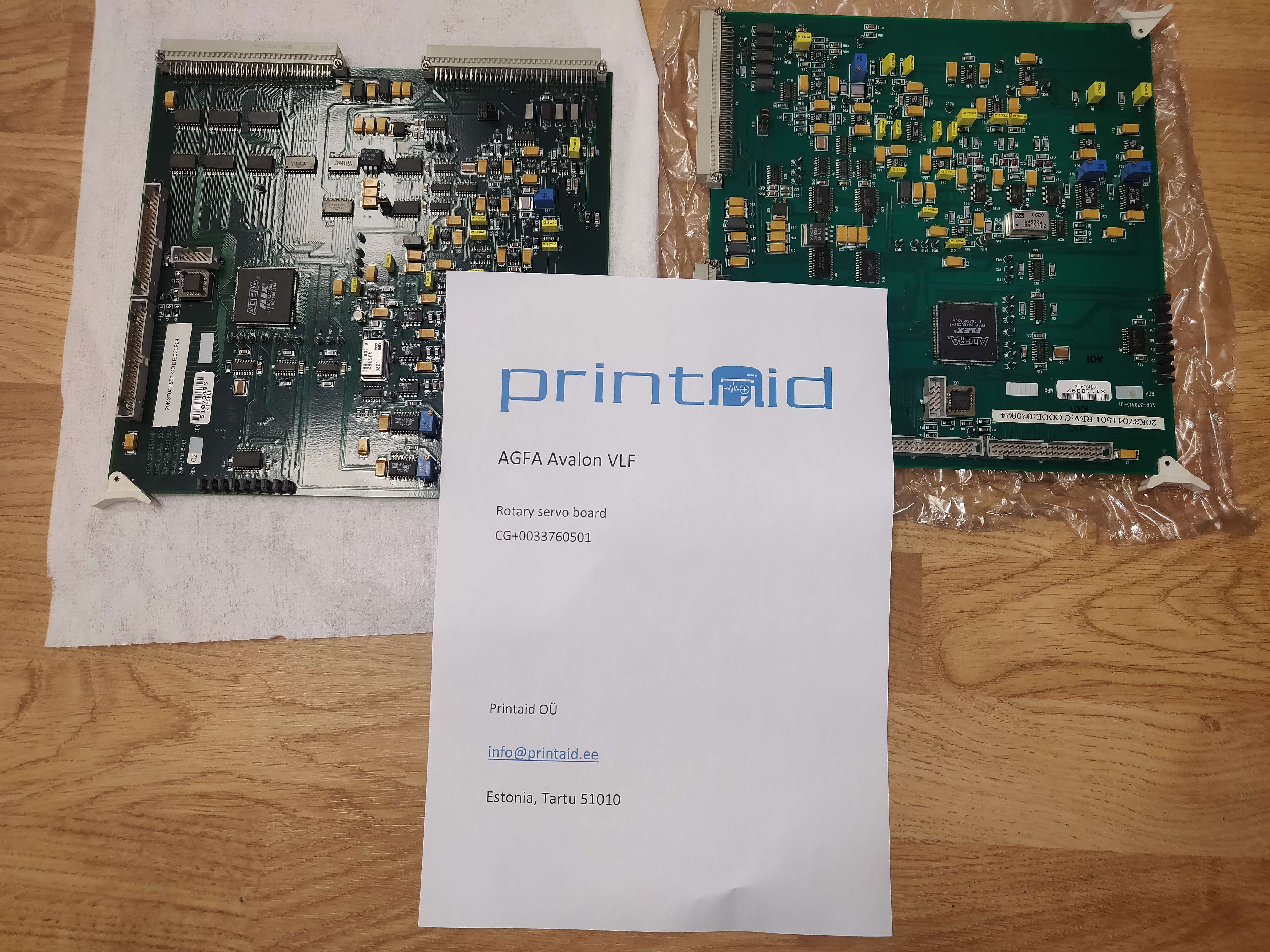

* Rotary servo board (2pcs.) CG+0033760501

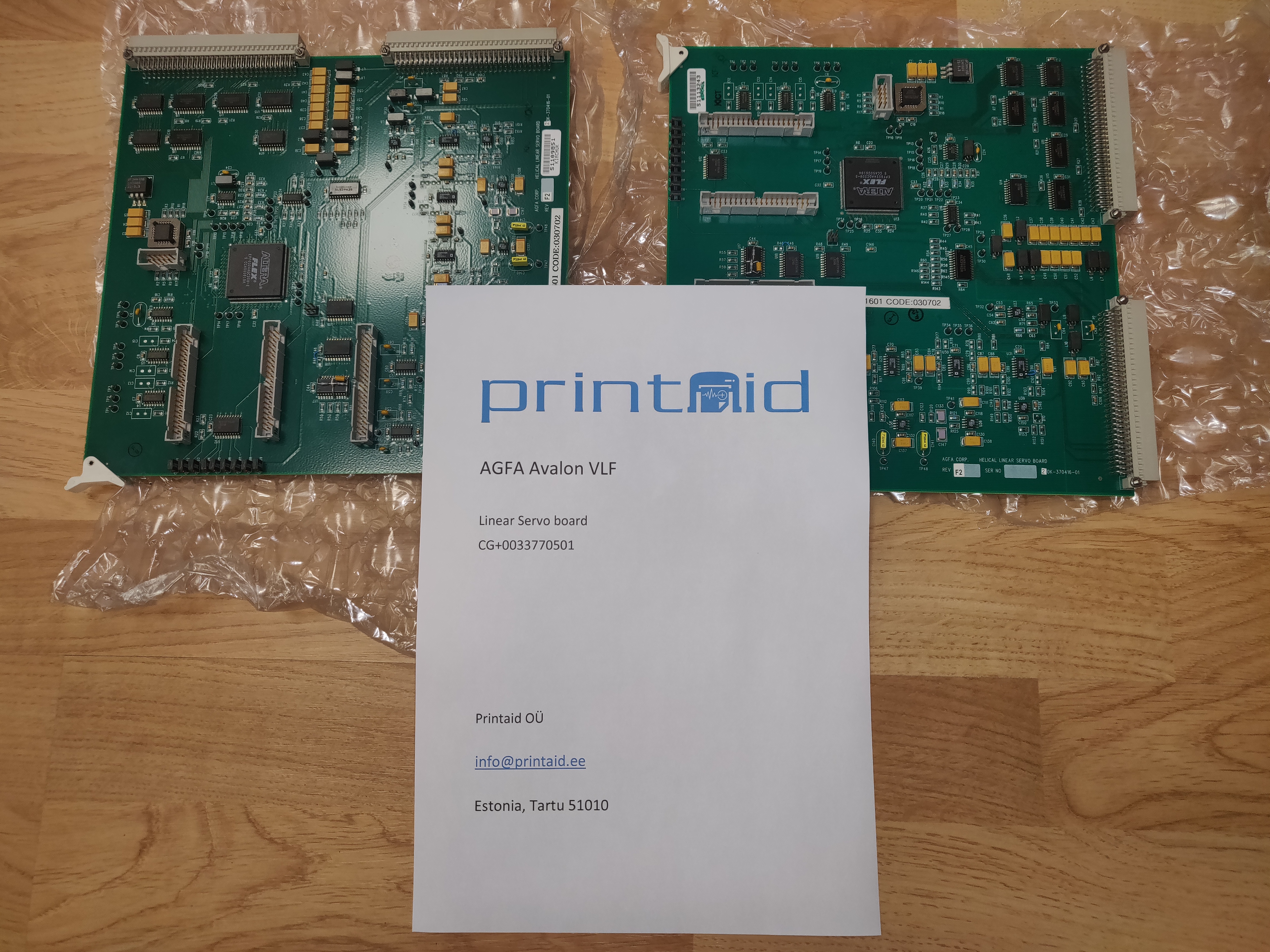

* Linear Servo board (2pcs.) CG+0033770501

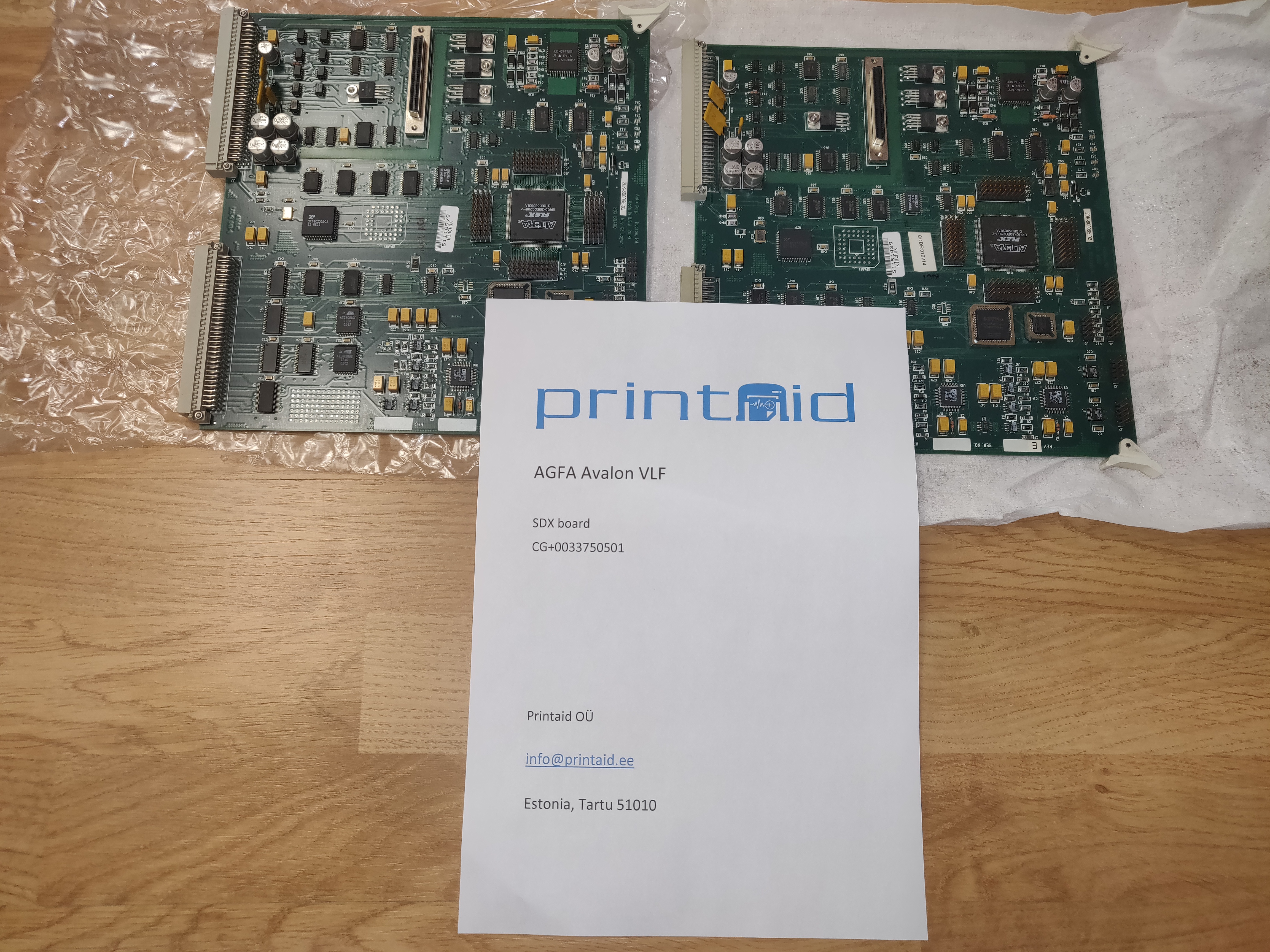

* SDX board (2pcs.) CG+0033750501

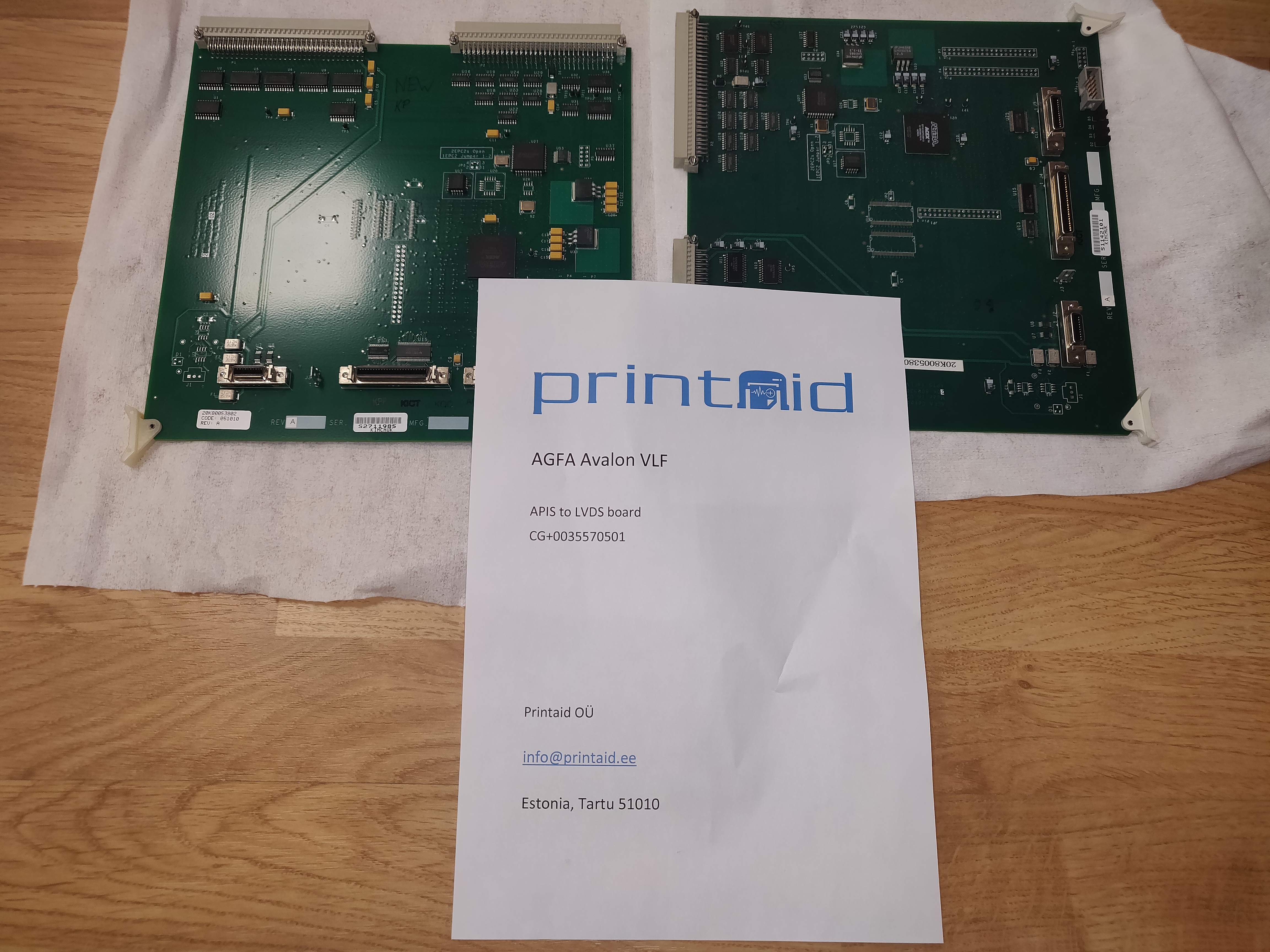

* APIS to LVDS board (2pcs.) CG+0035570501

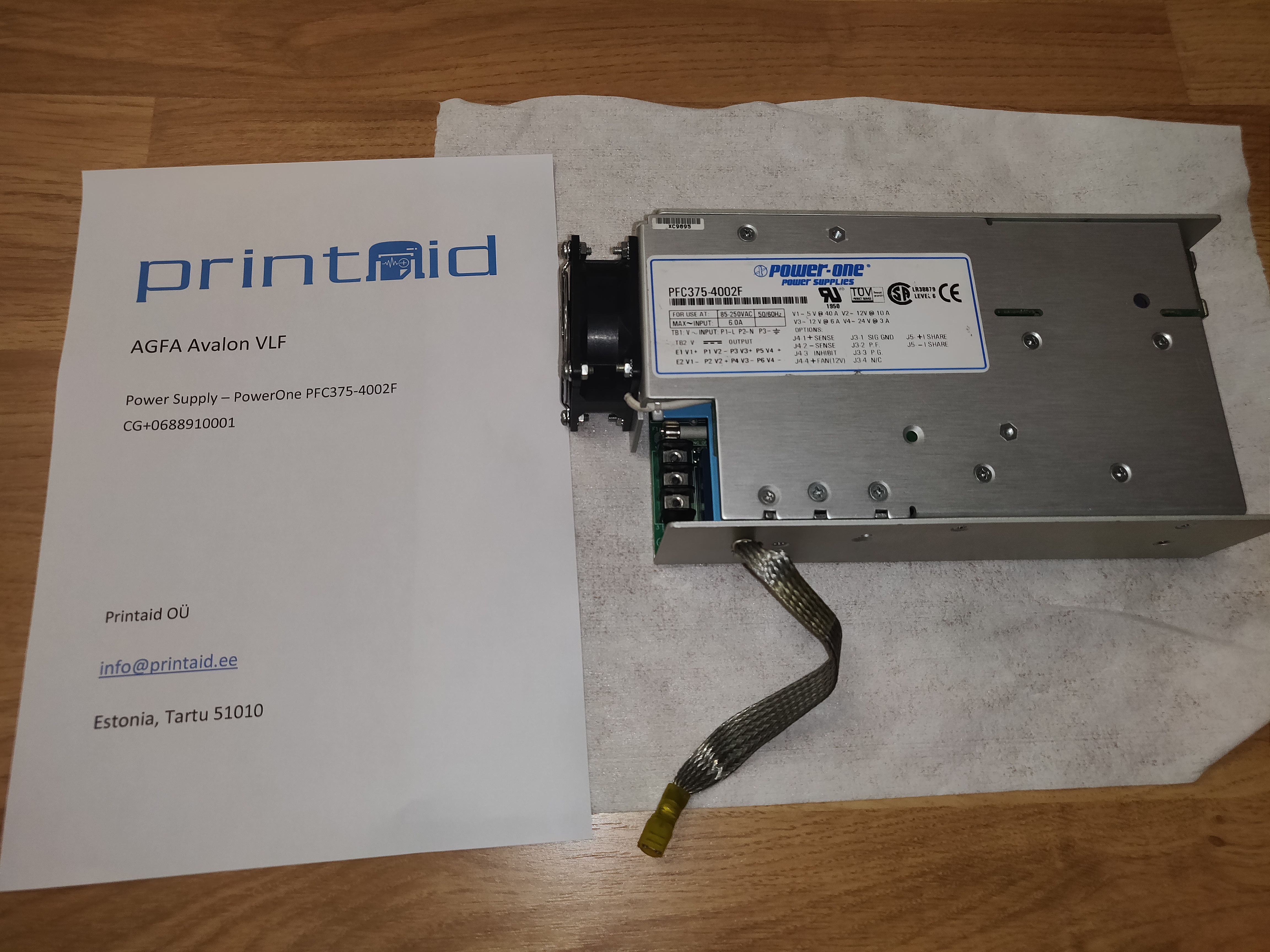

* Power Supply (powerone PFC375-4002F) - 3pcs. CG+0688910001

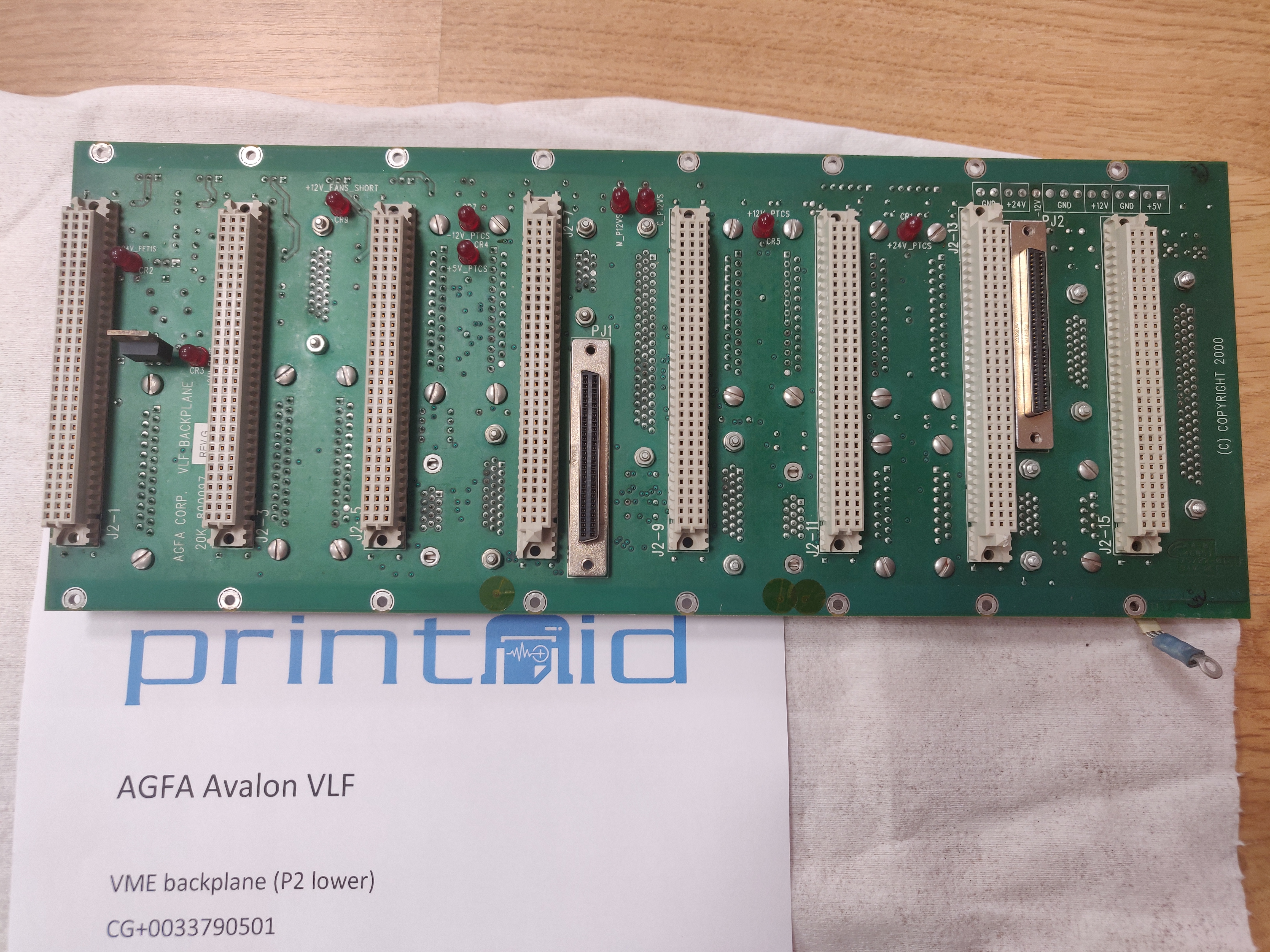

* VME backplane (P2 lower) 2pcs. CG+0033790501

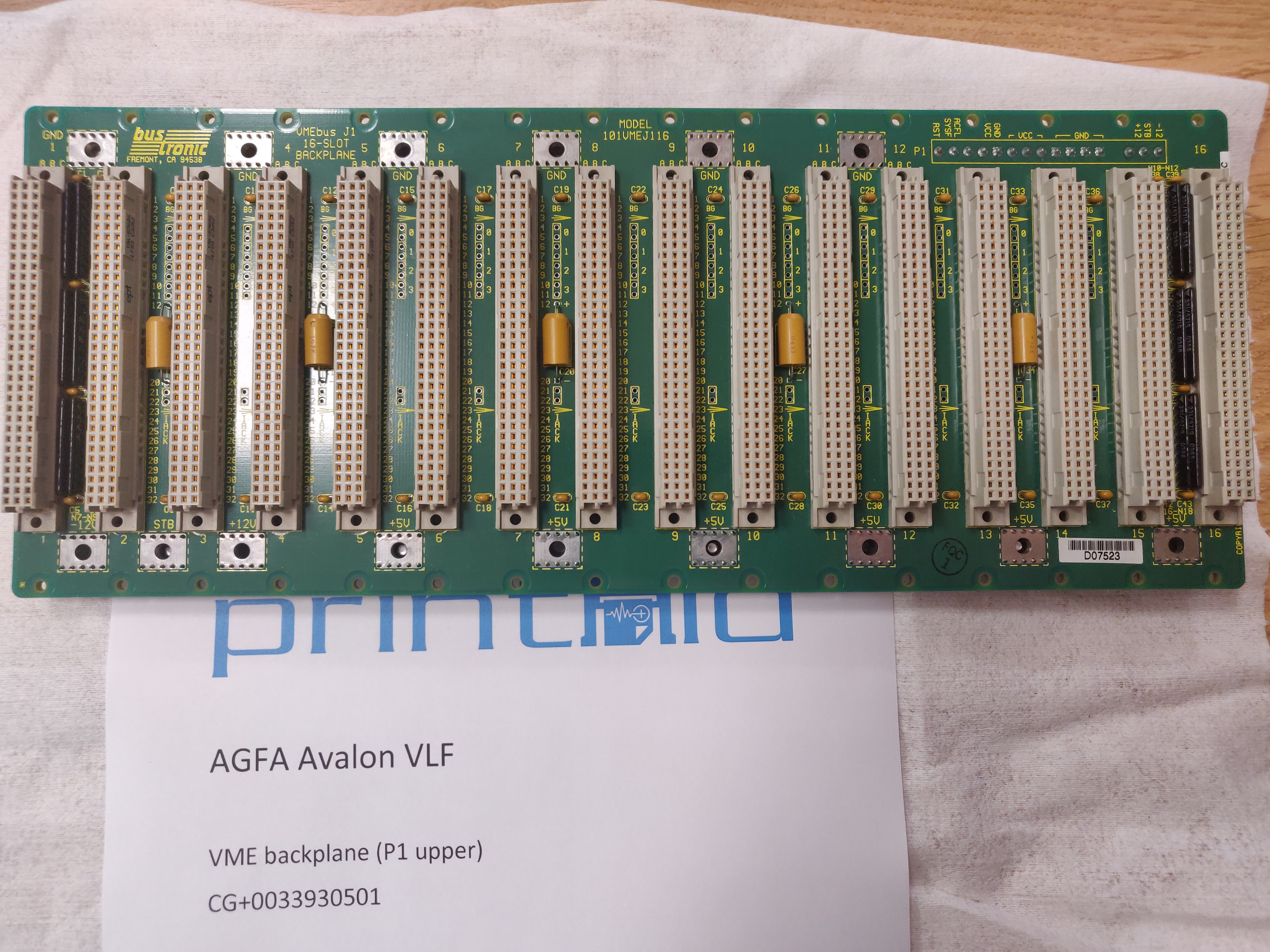

* VME backplane (P1 upper) 2pcs. CG+0033930501

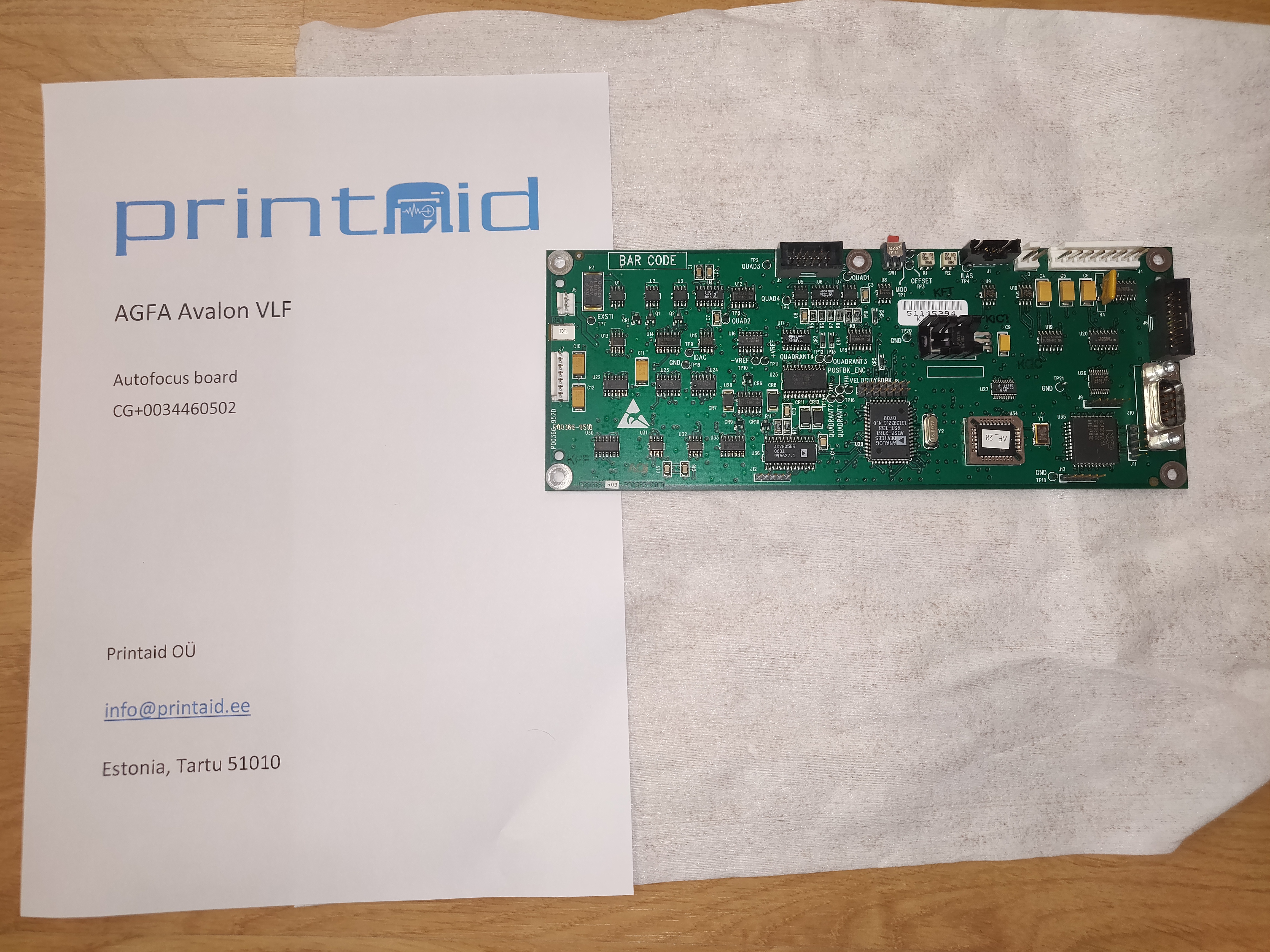

* Autofocus board CG+0034460502

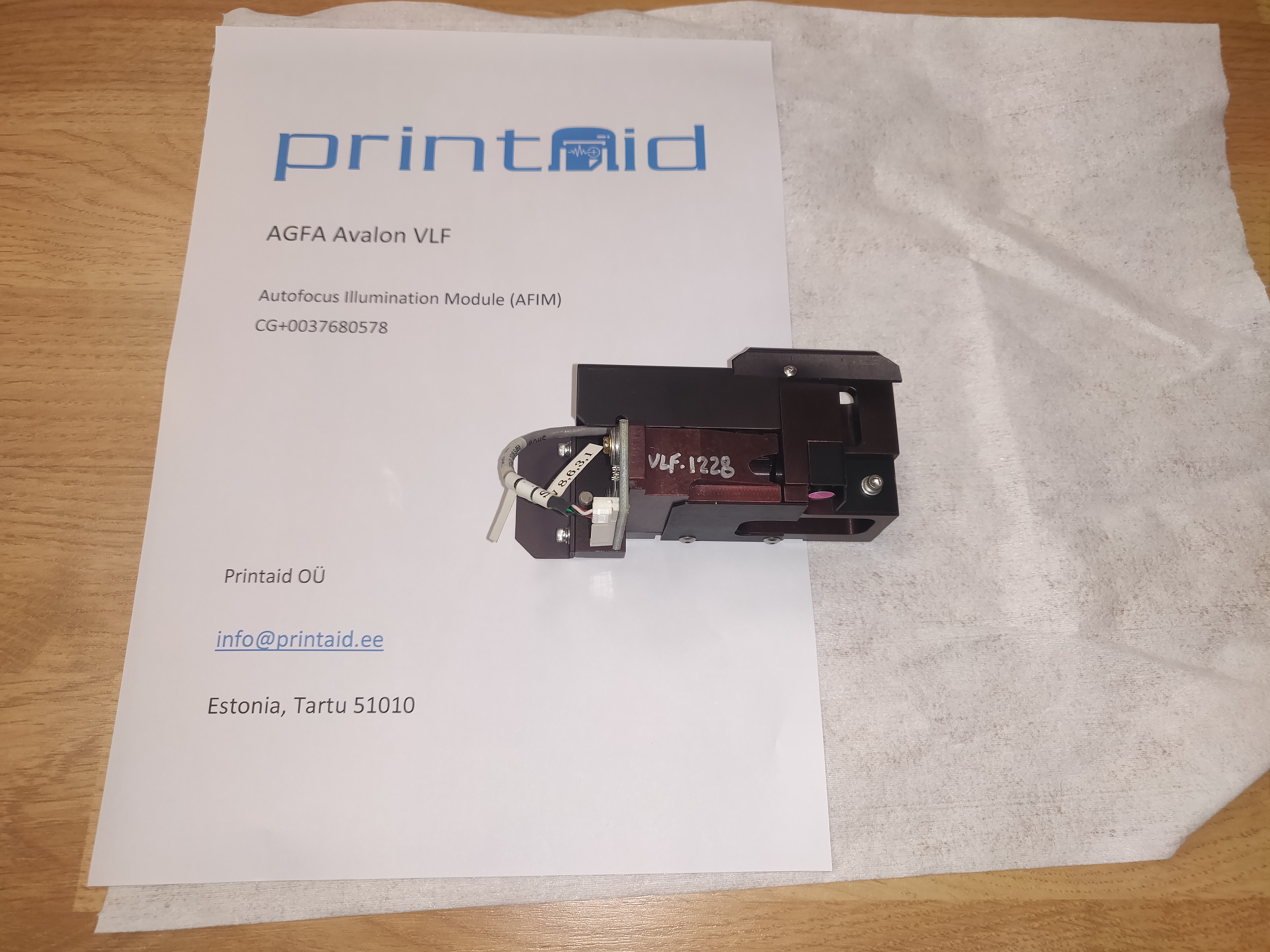

* Autofocus Illumination Module (AFIM) 2pcs. CG+0037680578

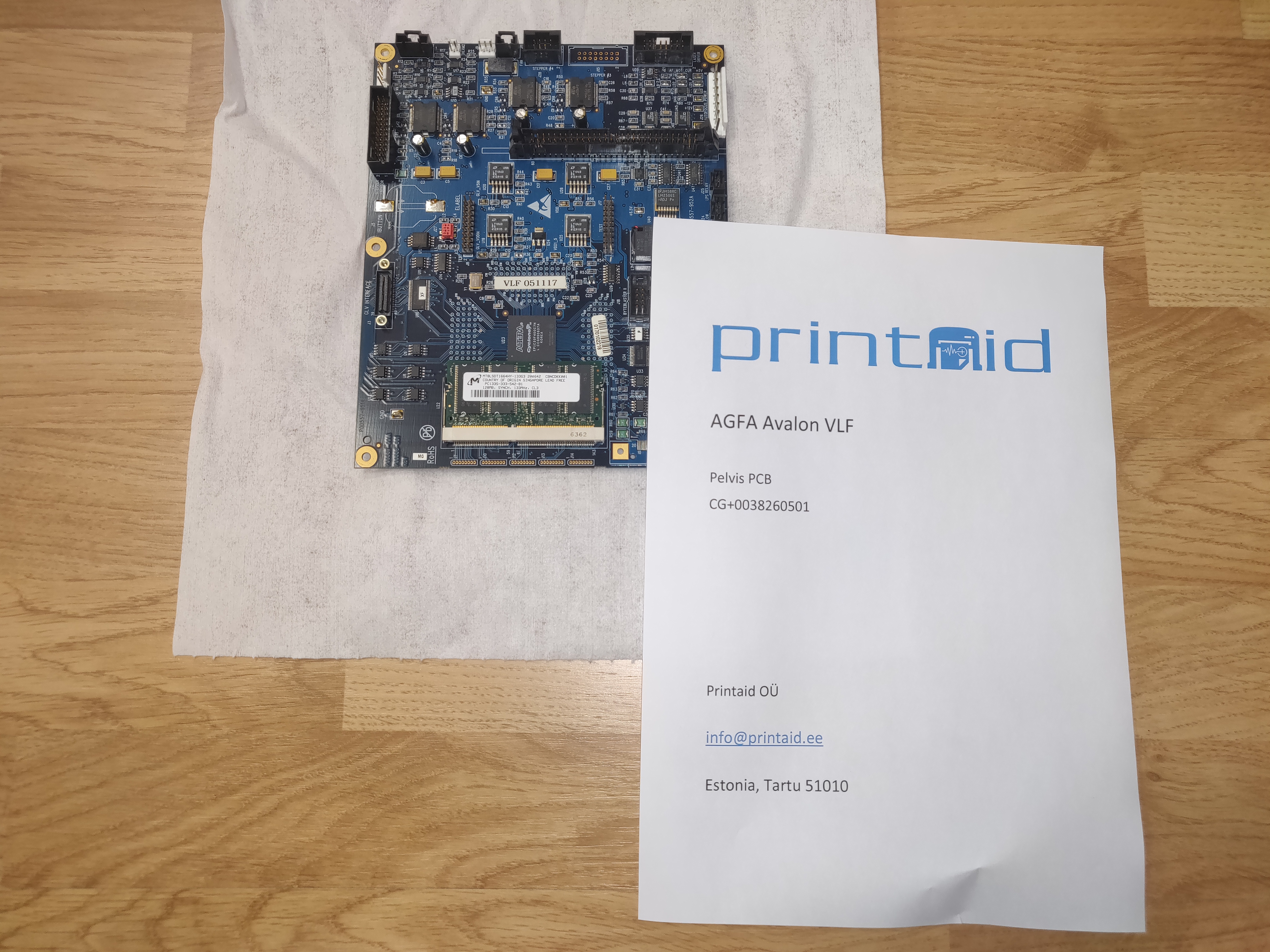

* Pelvis PCB kit CG+0038260501

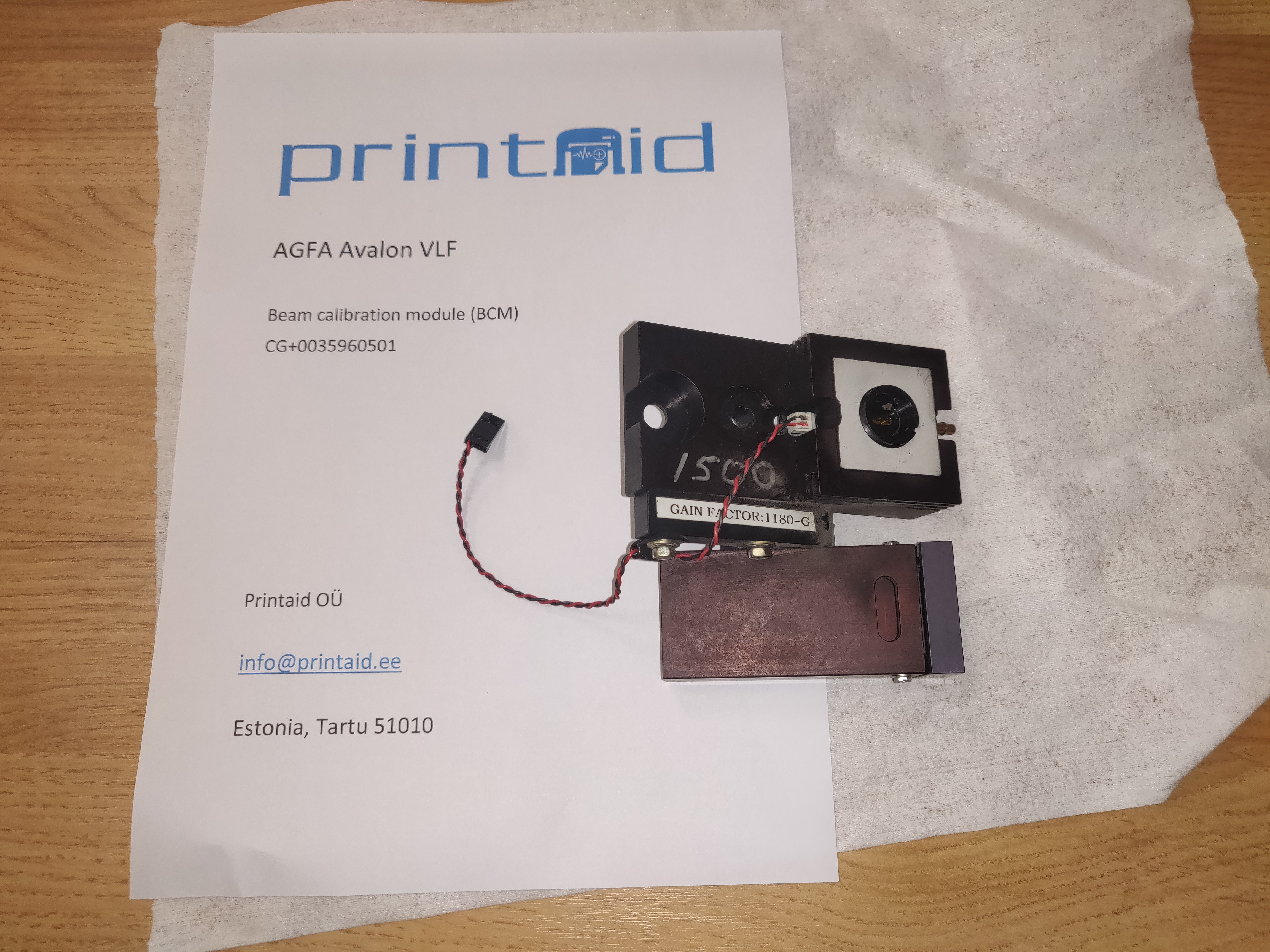

* Beam calibration module (BCM) 2pcs. CG+0035960501

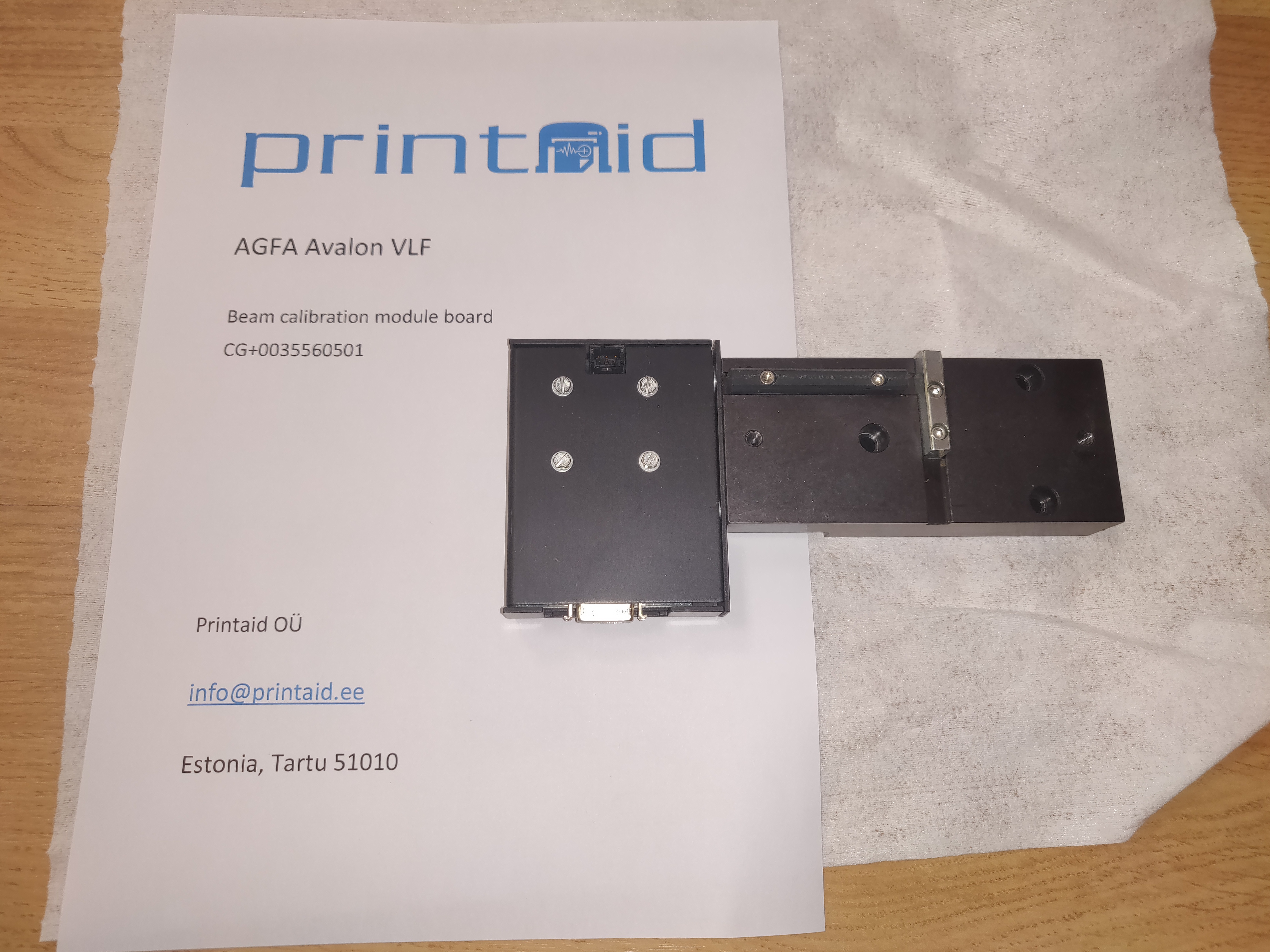

* Beam calibration module (BCM) calibration board 2pcs. CG+0035560501
* AC filter (6pcs.) CG+0689310001
* Linear drive amplifier (2pcs.) CG+0689290001
* Linear power supply (2pcs.) CG+0940080001
* Rotary drive amplifier (2pcs.) CG+0689280001
* Power supply, 24 volt, for fans, light curtain, main air (2pcs.) CG+0689330001
* Power supply, 24 volt for interlocks (2pcs.) CG+0689370001
* Belt, focus motor, slow scan (2pcs.) CG+0940160001
* Focus motor, slow scan (2pcs.) CG+0689260001
* Linear encoder read head (2pcs) CG+0940390002
* Mag motor assembly CG+0038190501
* Mag motor sensor CG+0950370001

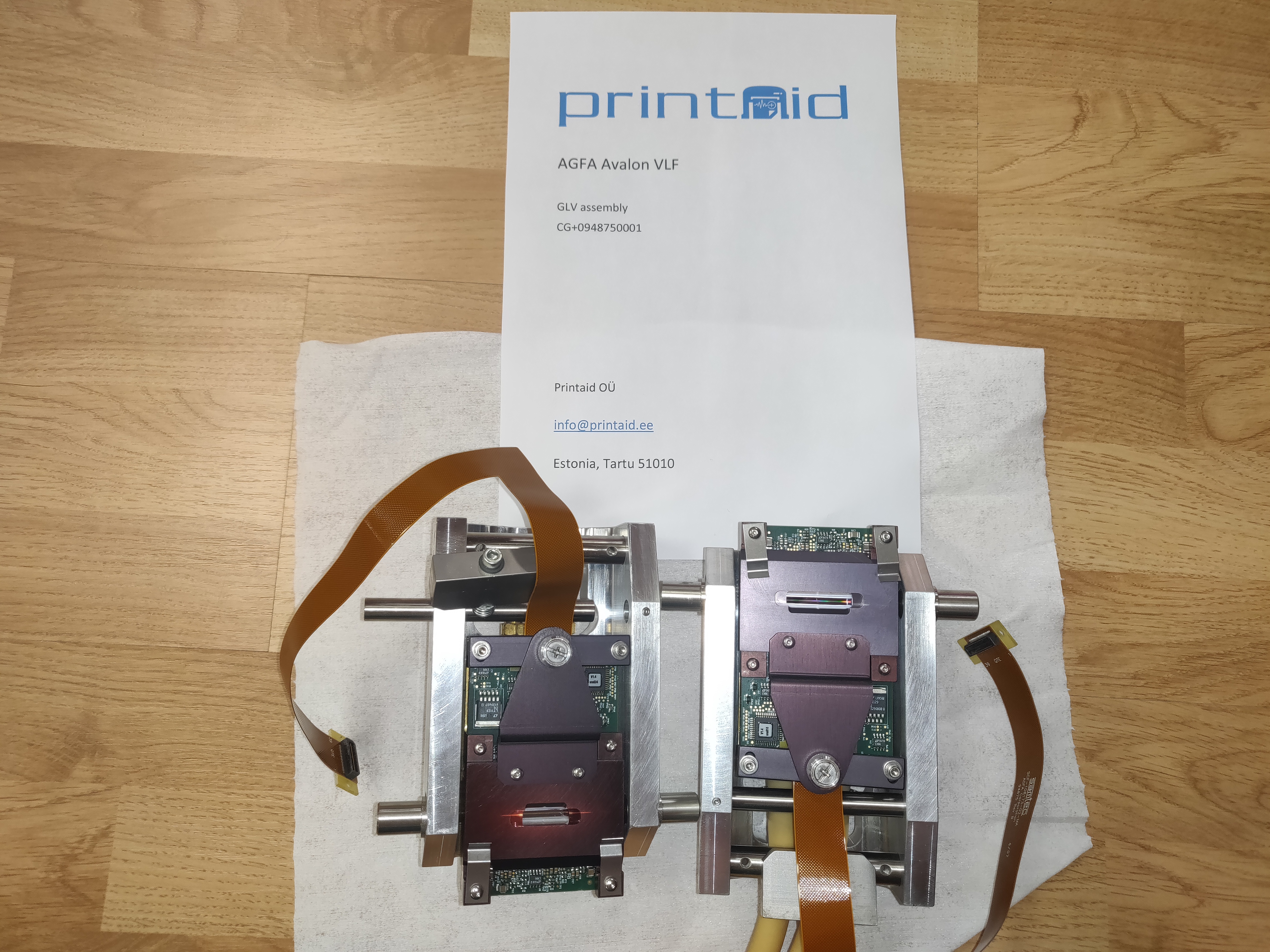

* GLV with flex circuit (2pcs.)
* AF motor (2pcs) CG+0034460502
* Rotary encoder read head and scale (2pcs) CG+0033630566

* AGFA USB/APIS HD interface (new in box)
* AGFA HP Pro Liam server with PCI-X APIS card & Unidiag


and more sensors and parts (ask)

Some pics of the parts:
https://www.upload.ee/image/14053147/2022-04-13_20.19.37.jpg
https://www.upload.ee/image/14053152/2022-04-13_20.24.13.jpg
https://www.upload.ee/image/14053160/2022-04-13_20.29.24.jpg
https://www.upload.ee/image/14053161/2022-04-13_20.27.43.jpg
https://www.upload.ee/image/14053162/2022-04-13_20.26.14.jpg
https://www.upload.ee/image/14053166/2022-04-13_20.30.35.jpg
https://www.upload.ee/image/14053167/2022-04-13_20.32.14.jpg
https://www.upload.ee/image/14053168/2022-04-13_20.33.38.jpg
https://www.upload.ee/image/14053175/2022-04-13_20.38.15.jpg
https://www.upload.ee/image/14053176/2022-04-13_20.38.51.jpg
https://www.upload.ee/image/14053177/2022-04-13_20.37.37.jpg
https://www.upload.ee/image/14053185/2022-04-13_20.47.01.jpg
https://www.upload.ee/image/14053186/2022-04-13_20.46.19.jpg
https://www.upload.ee/image/14053187/2022-04-13_20.42.49.jpg



Located in Estonia.
