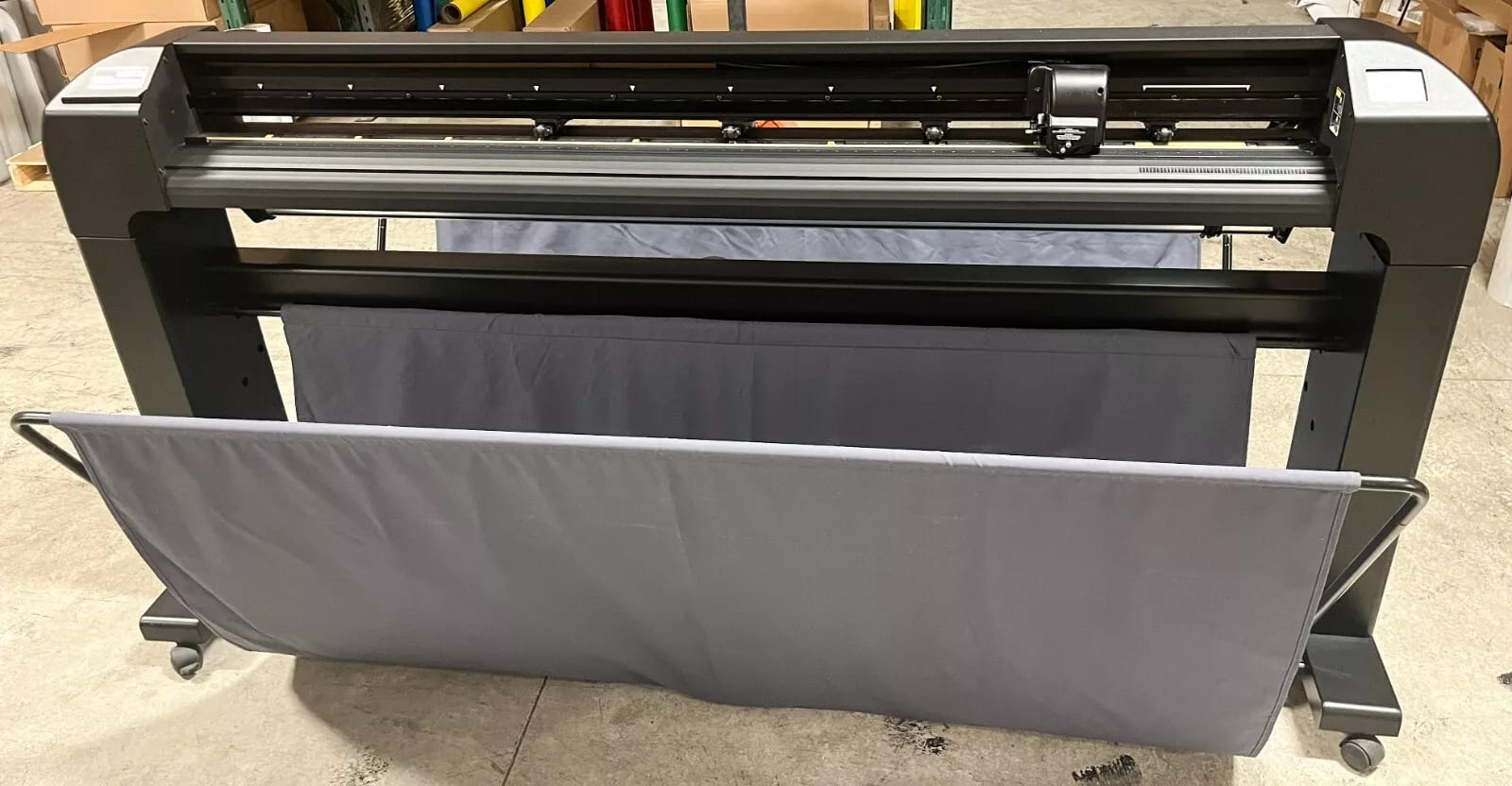

Summa S2™ D Series vinyl cutters combine the highest quality engineering with the most advanced cutting technology to deliver the longest contour cutting accuracy for printed graphics.
With the constant evolution of sign-making, you need equipment that is both flexible and durable, now more than ever.
Summa S Class 2 cutters are built on a foundation of rock-solid reliability and offer features to handle virtually anything you throw their way. Whether cutting vinyl, digital die-cutting, plotting on paper or beyond, Summa S2™ D Series is a do-it-all dynamo with the resilience to perform day in and day out.

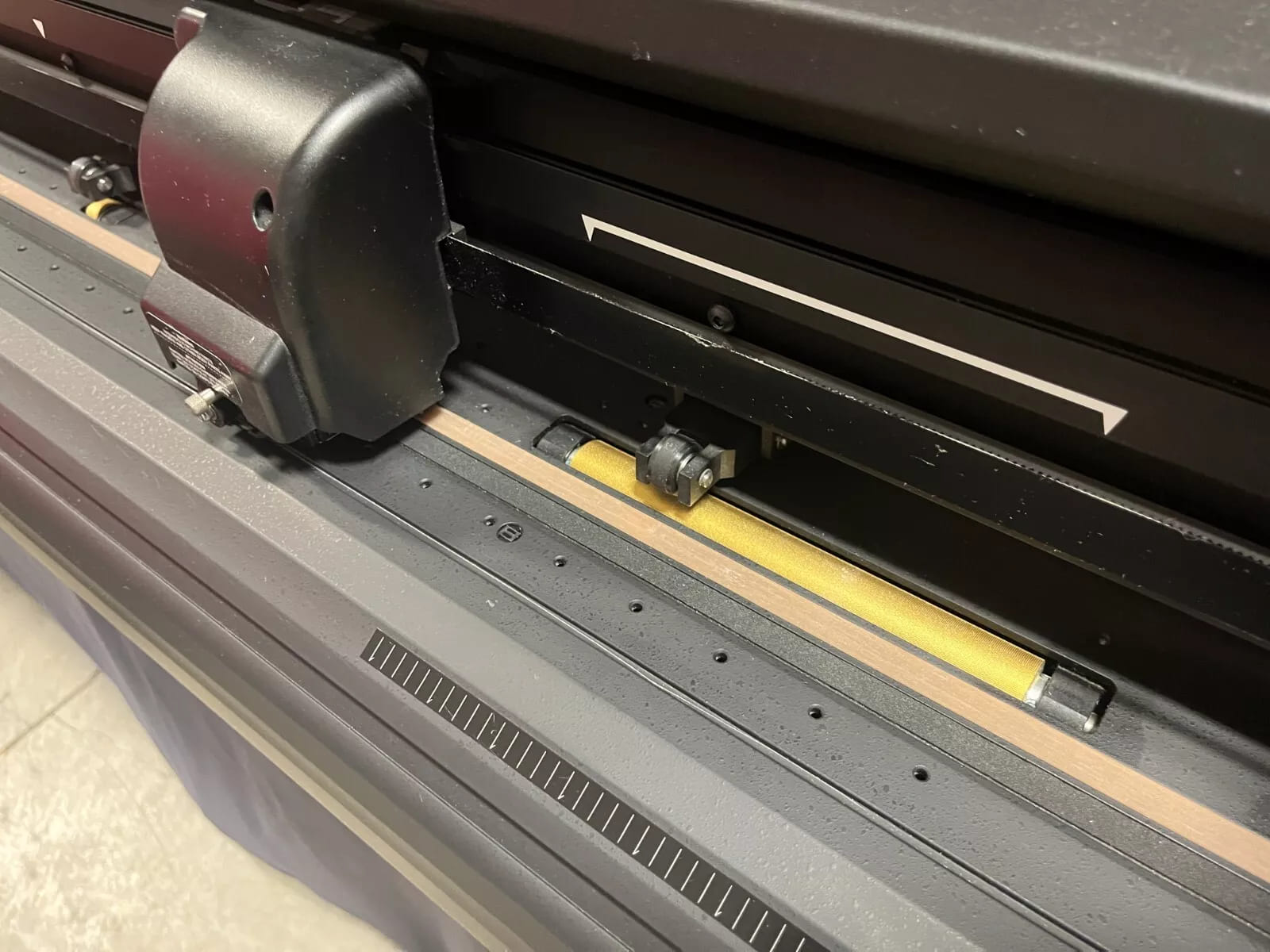

Three powerful digital servomotors, combined with the next generation of Summa's acclaimed optical positioning alignment system, OPOS-X™, allow for unmatched accuracy over long job runs - out pacing any other contour cutter on the planet.

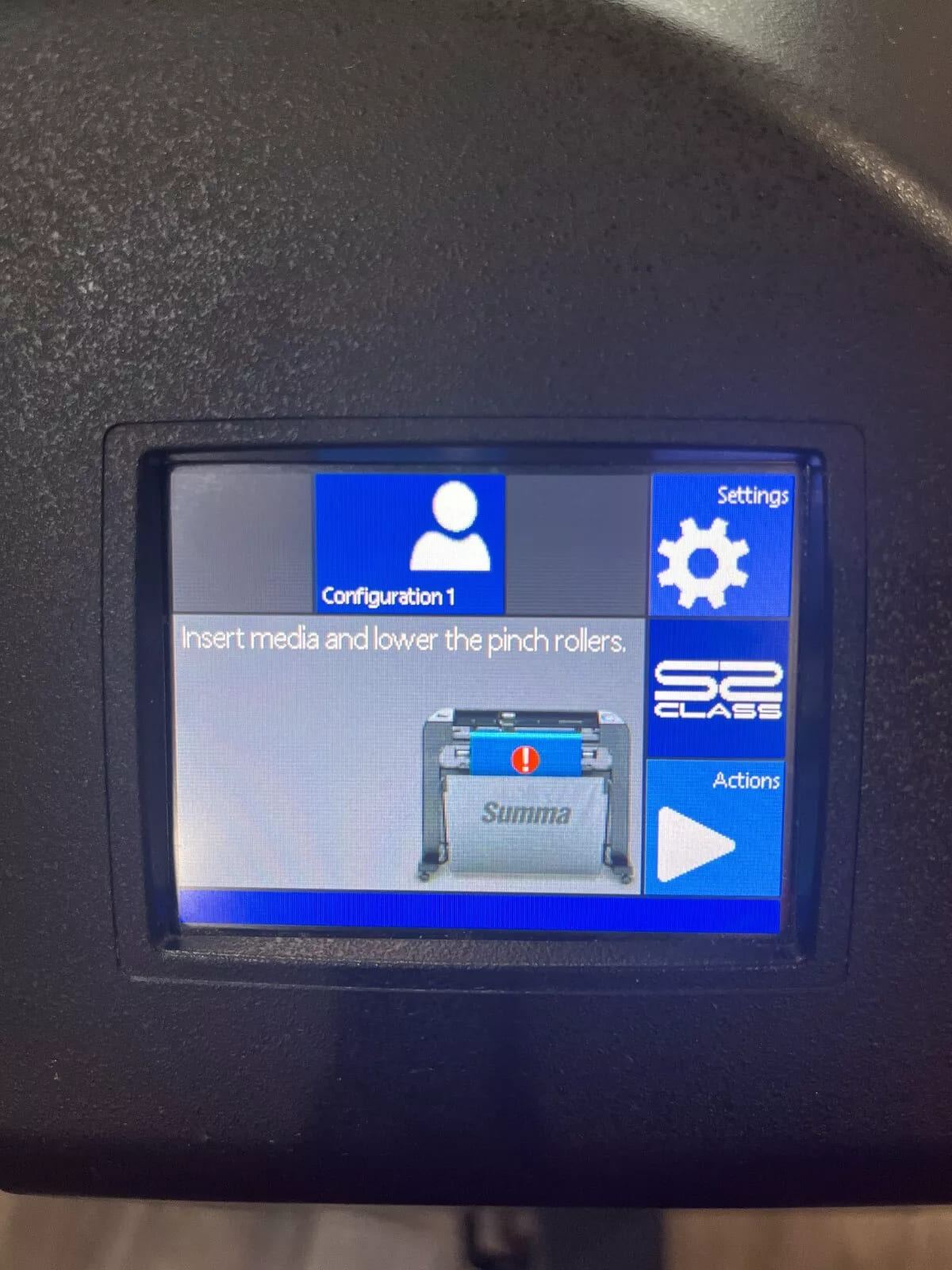

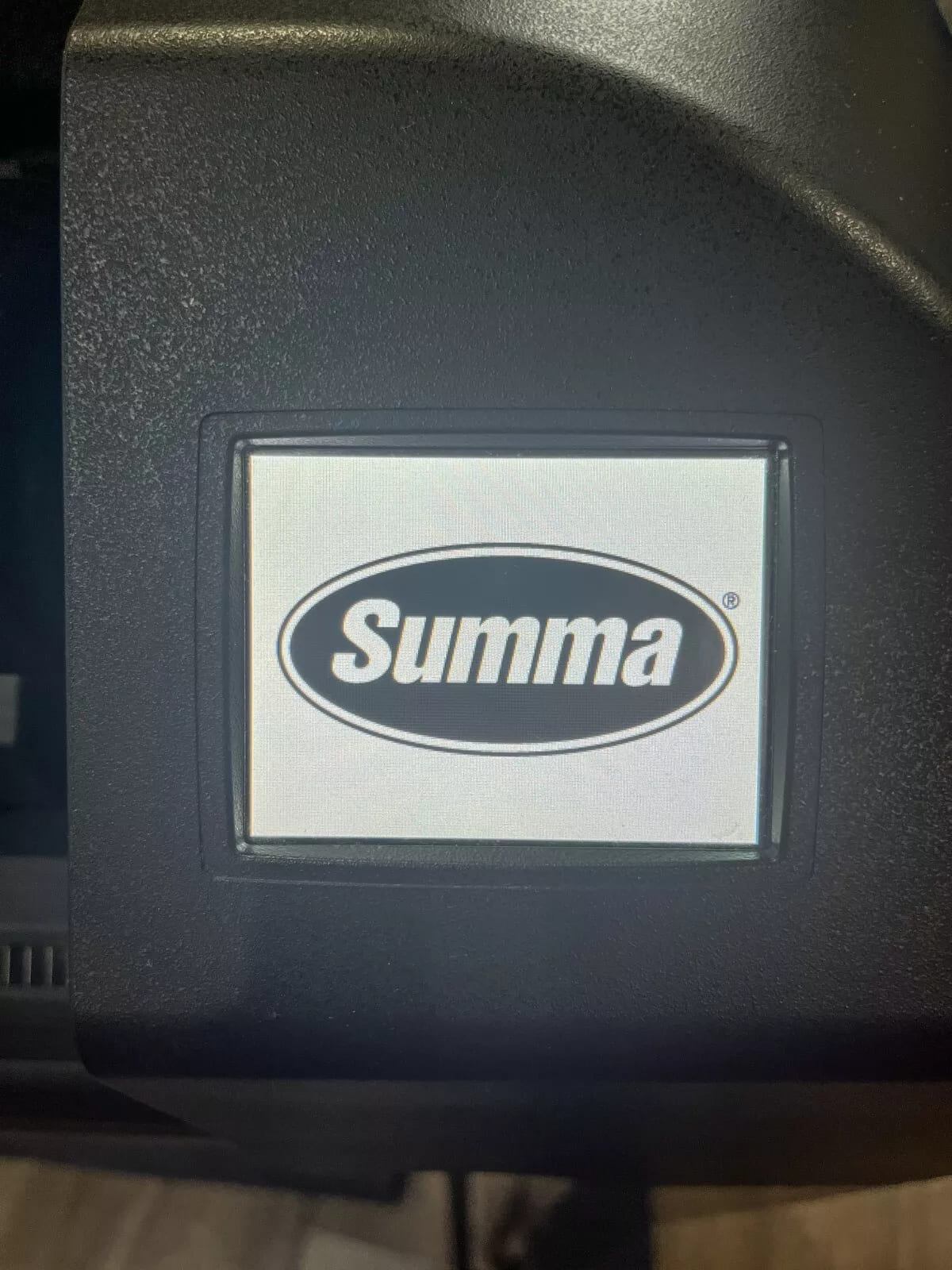

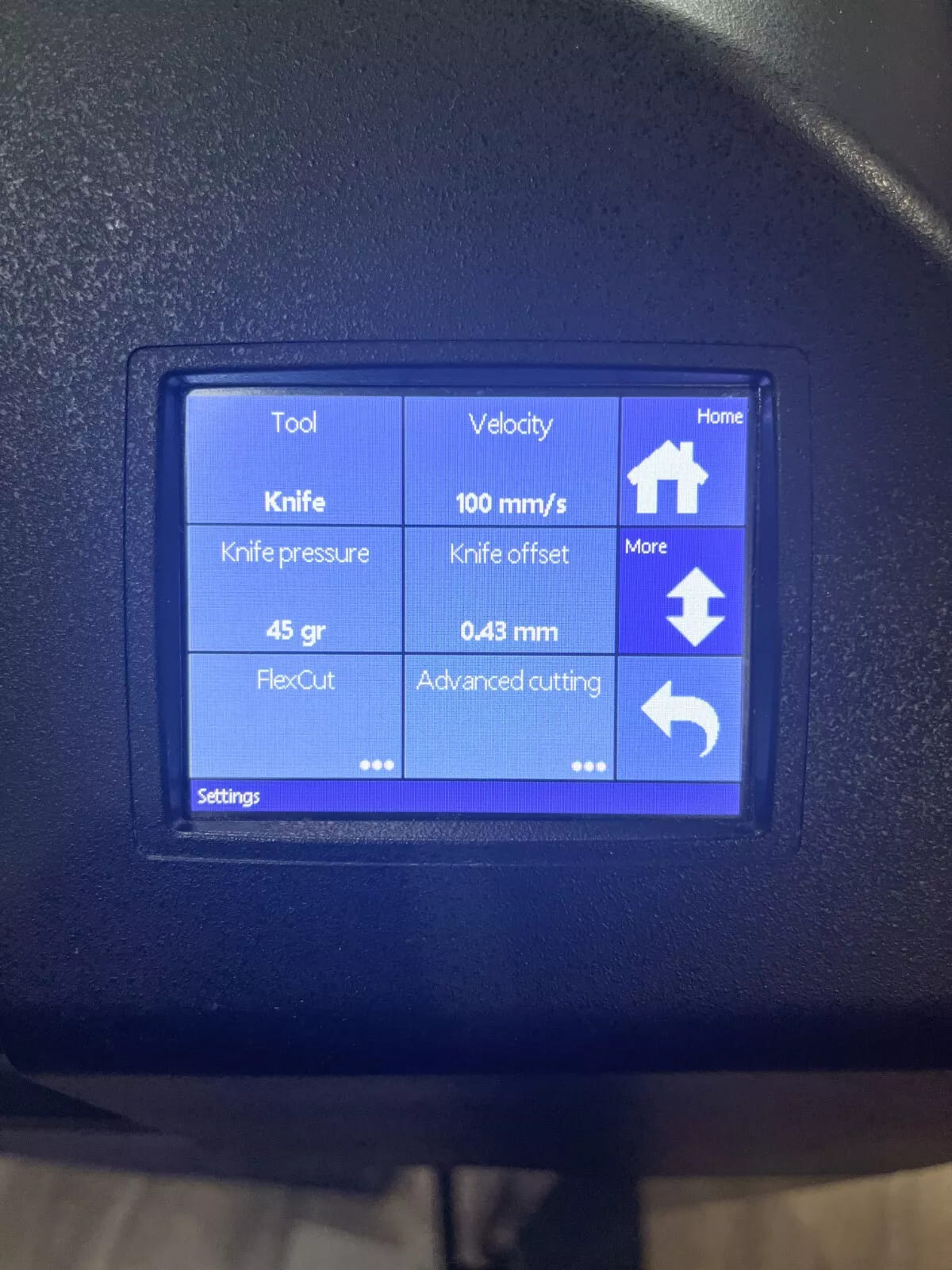

The lightning-fast internal processor operates seven times faster than ever before – while the touch-sensitive color LCD control panel and intuitively redesigned user interface allows the operator to effortlessly adjust any parameter of the S2. Plus, with Summa's new FlashCut™ feature, cut files can be stored on a USB memory drive and retrieved instantly via the S2's interface. Frequently processed jobs can be accessed directly from the cutter without the use of a PC.
Another new S2 innovation is the addition of Ethernet connectivity for faster communication and data transmission speeds. Multiple computers can now control one unit across a network, or a crossover cable can be used for direct connection.
Designed specifically for high-volume vinyl and digital print shop environments, Summa S Class cutters have a long-established reputation for reliability, innovation and outstanding performance – all with tracking accuracy that is second to none. When tight deadlines loom and your jobs require hassle-free, perfect cuts, the S2 D Series truly shines.
Selling for: $4,000
With the constant evolution of sign-making, you need equipment that is both flexible and durable, now more than ever.
Summa S Class 2 cutters are built on a foundation of rock-solid reliability and offer features to handle virtually anything you throw their way. Whether cutting vinyl, digital die-cutting, plotting on paper or beyond, Summa S2™ D Series is a do-it-all dynamo with the resilience to perform day in and day out.
Three powerful digital servomotors, combined with the next generation of Summa's acclaimed optical positioning alignment system, OPOS-X™, allow for unmatched accuracy over long job runs - out pacing any other contour cutter on the planet.
The lightning-fast internal processor operates seven times faster than ever before – while the touch-sensitive color LCD control panel and intuitively redesigned user interface allows the operator to effortlessly adjust any parameter of the S2. Plus, with Summa's new FlashCut™ feature, cut files can be stored on a USB memory drive and retrieved instantly via the S2's interface. Frequently processed jobs can be accessed directly from the cutter without the use of a PC.
Another new S2 innovation is the addition of Ethernet connectivity for faster communication and data transmission speeds. Multiple computers can now control one unit across a network, or a crossover cable can be used for direct connection.
Designed specifically for high-volume vinyl and digital print shop environments, Summa S Class cutters have a long-established reputation for reliability, innovation and outstanding performance – all with tracking accuracy that is second to none. When tight deadlines loom and your jobs require hassle-free, perfect cuts, the S2 D Series truly shines.

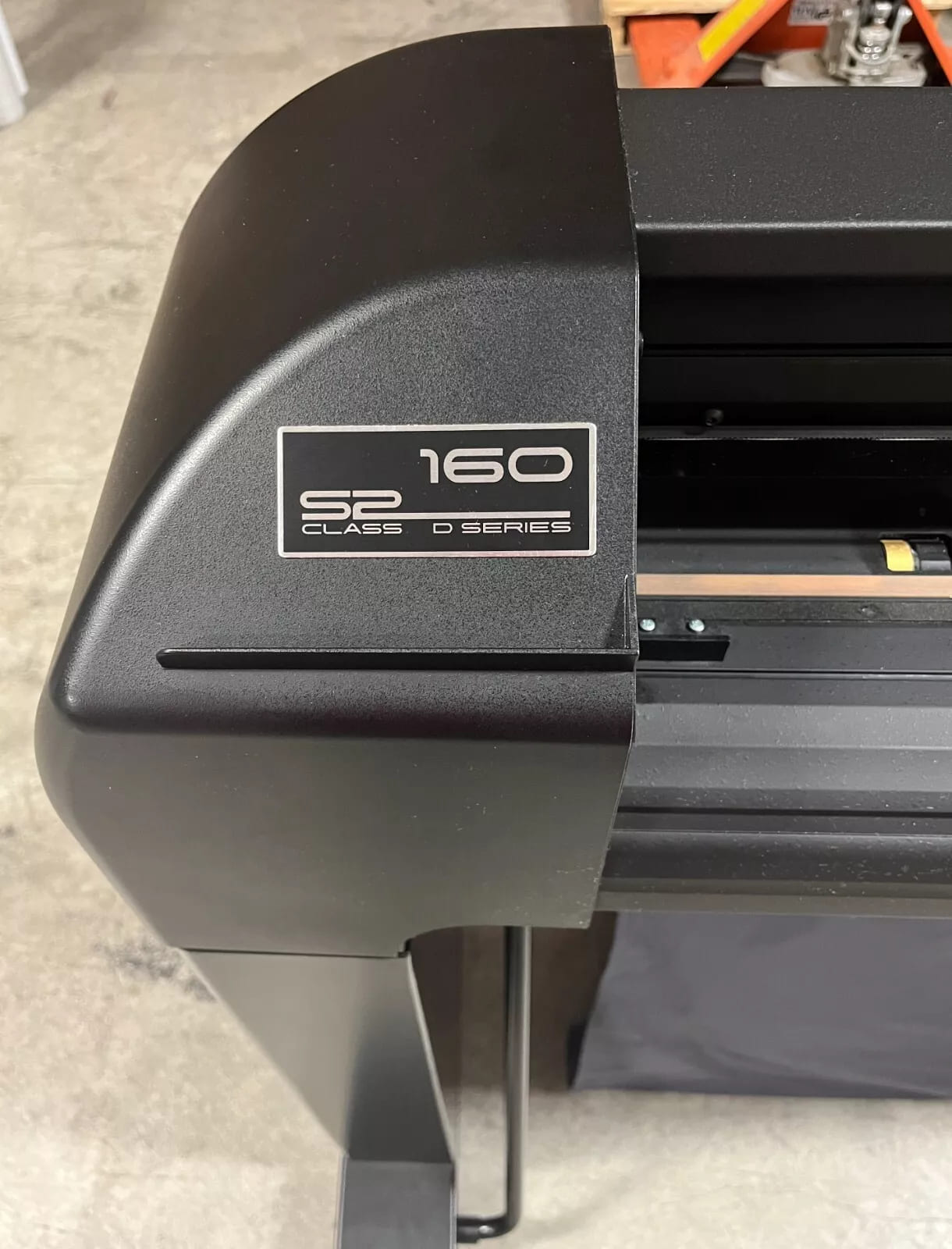

| MODEL | Summa S2 D160 |

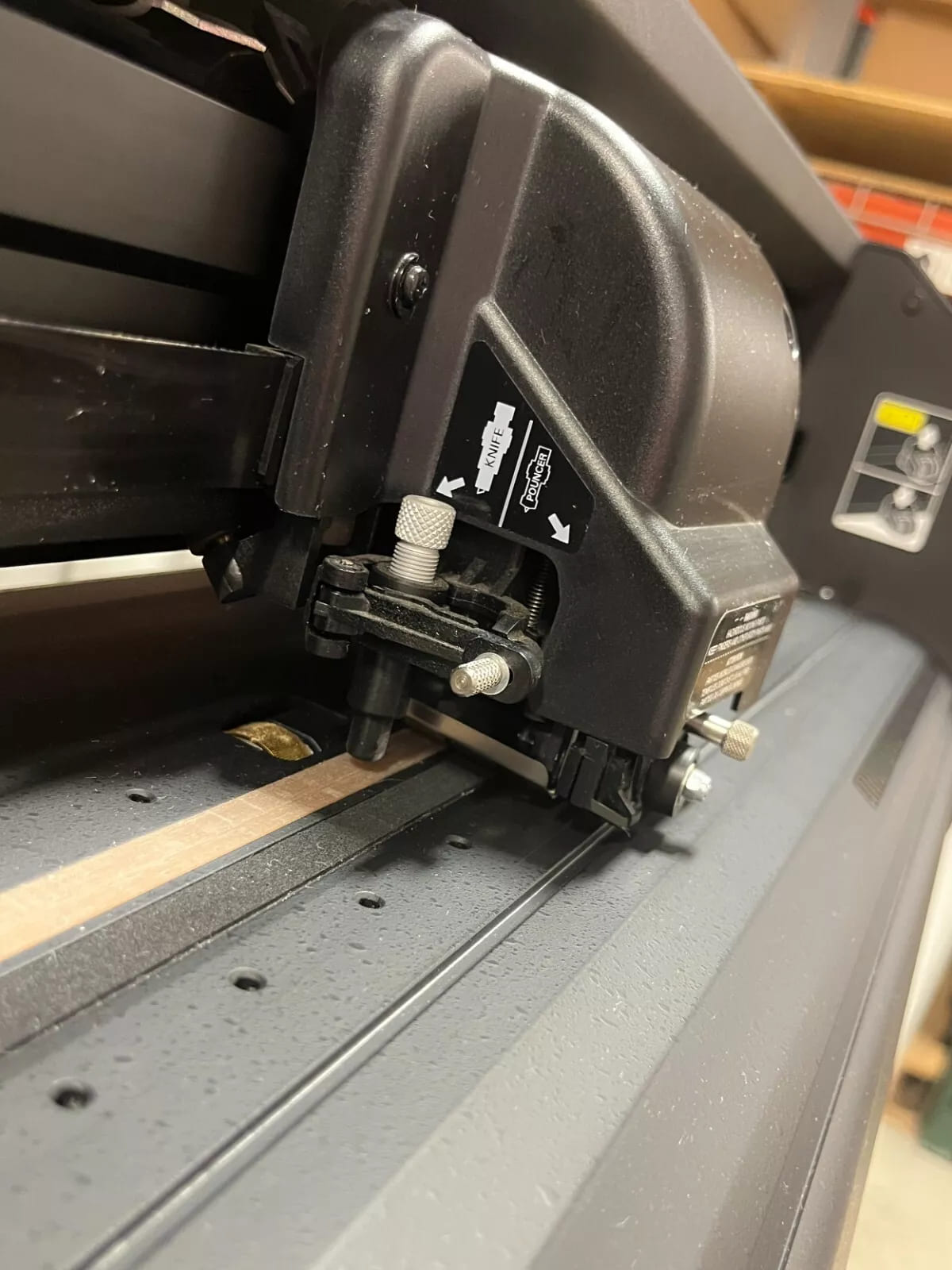

| CUT TYPE | Drag knife with TurboCut and Tangential Emulation Modes |
| CUT WIDTHS | 62.2-inch (158 cm), Extended Mode: width of the material |
| CUT SPEED | All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal |
| AXIAL ACCELERATION | Up to 4 G |
| MAXIMUM ACCELERATION | Up to 5.5 G diagonal |
| REPEATABILITY | Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long |
| TRACKING | 164 ft. (50 m) long |
| CUT FORCE | 0-400 grams of down-force, in 5 gram increments |
| DISPLAY LANGUAGES | English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese |

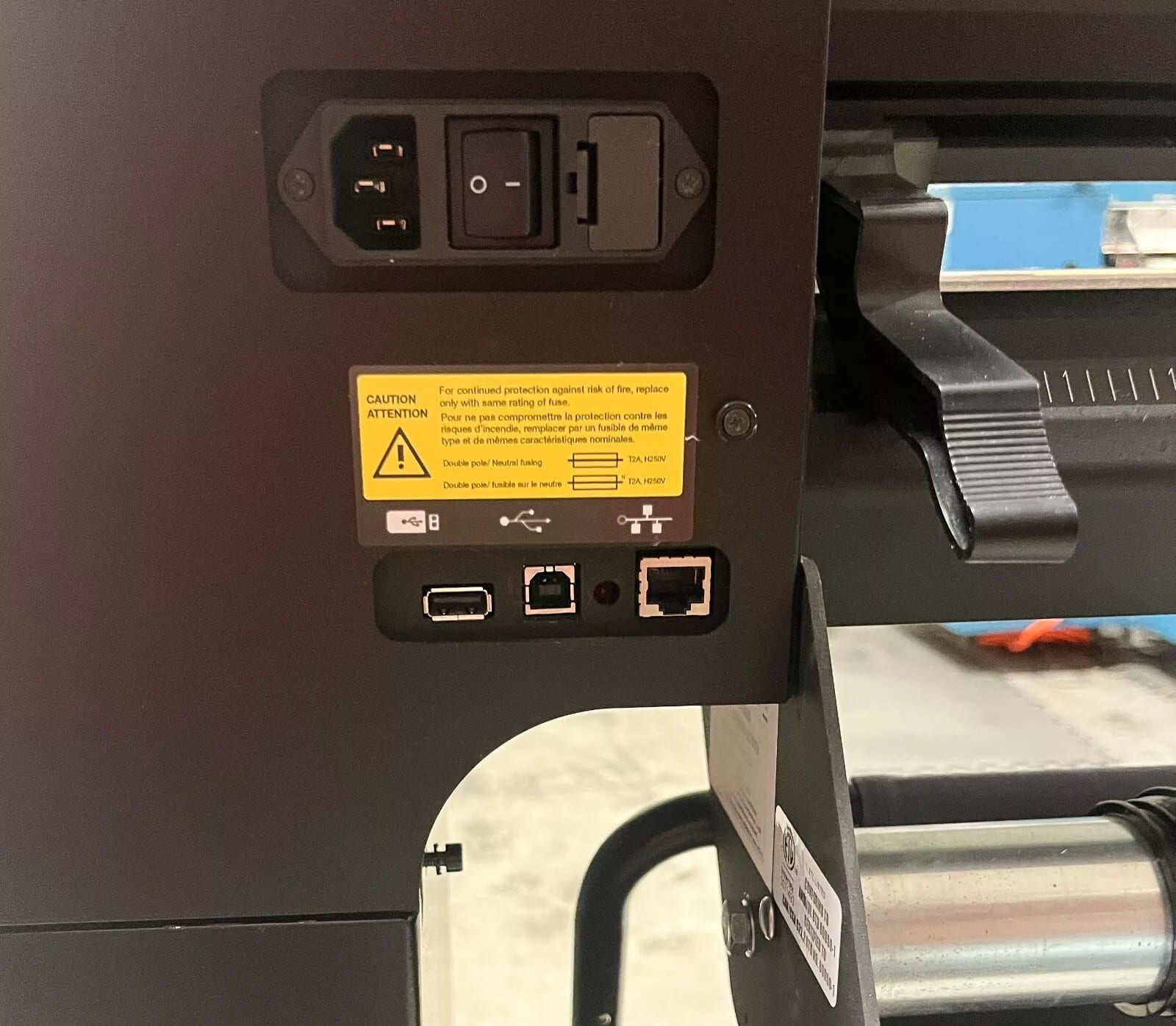

| CONNECTIVITY | USB; Ethernet |

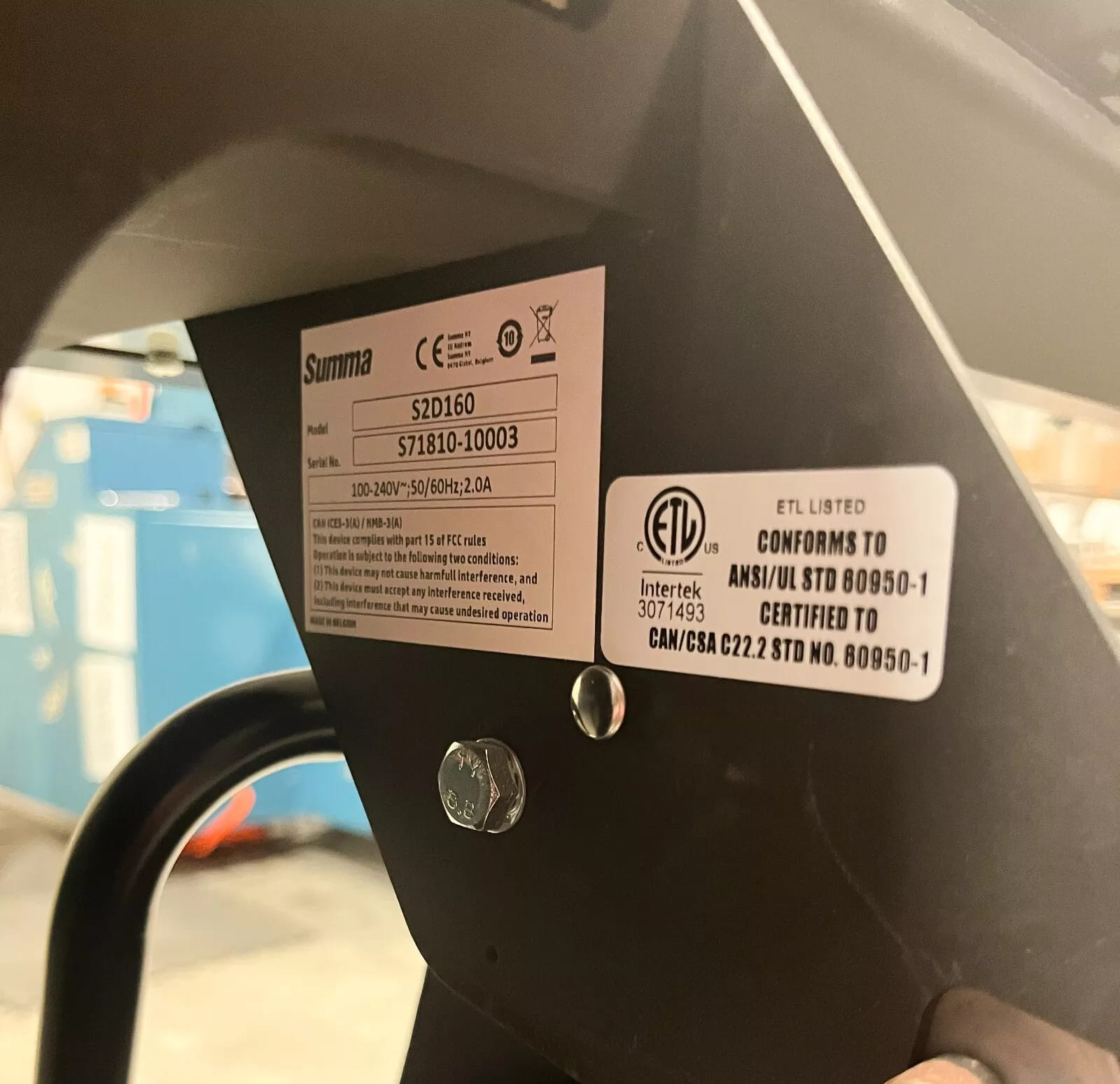

| POWER REQUIREMENTS | AC 100V to 240V ±10% 48-62Hz, 85 VA maximum |

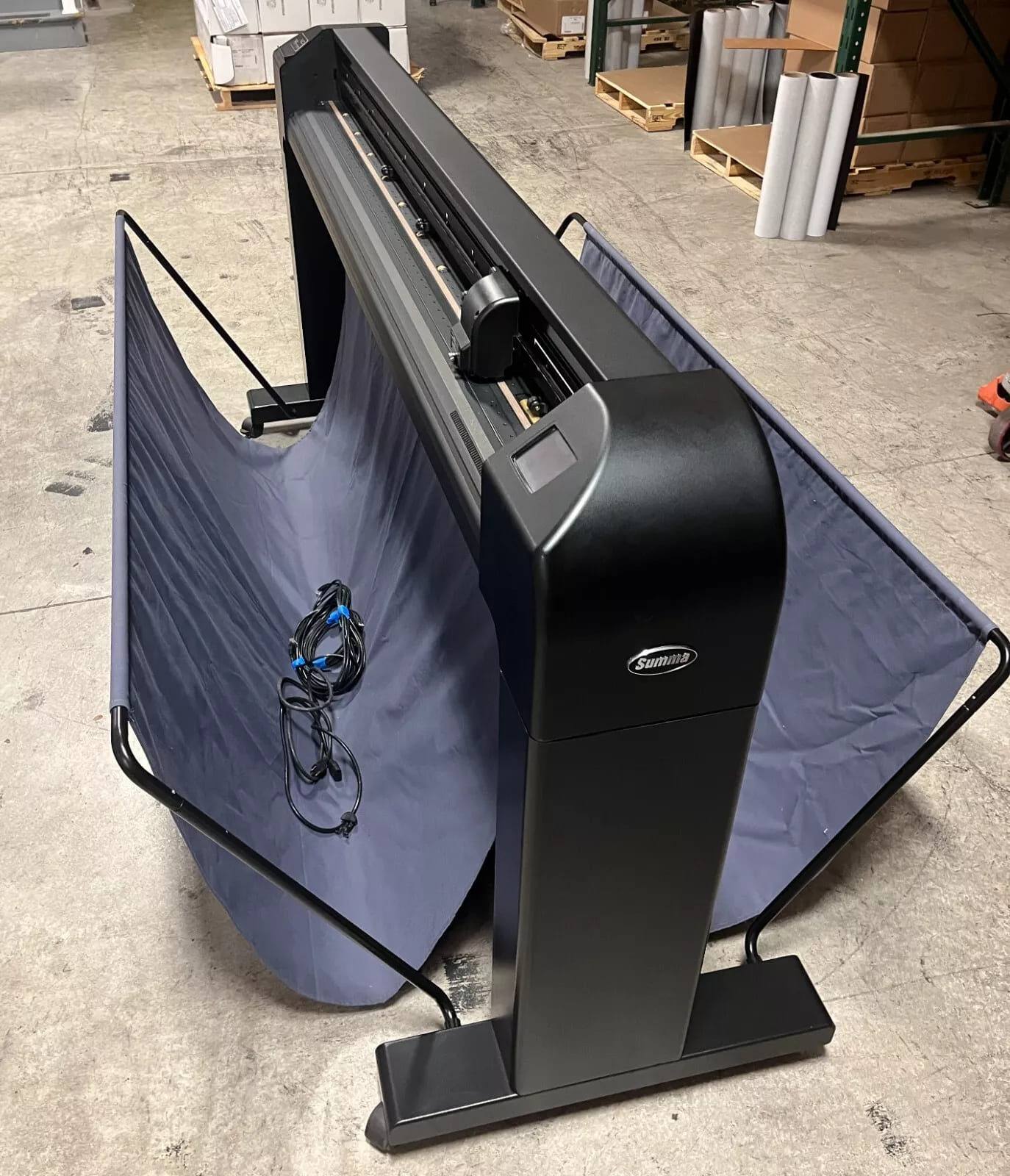

| DIMENSIONS | 88.6 (W) x 26.8 (D) x 43.7 (H) in. 225 (W) x 68 (D) x 111 (H) cm |
| SHIPPING WEIGHT | 251 lbs (114 kg) |
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) |
| STANDARD ACCESSORIES | WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Pouncing Pin and Holder, Stand and Basket. |
Selling for: $4,000
