Amsky Ausetter 848 U CtcP

foliart

Well-known member

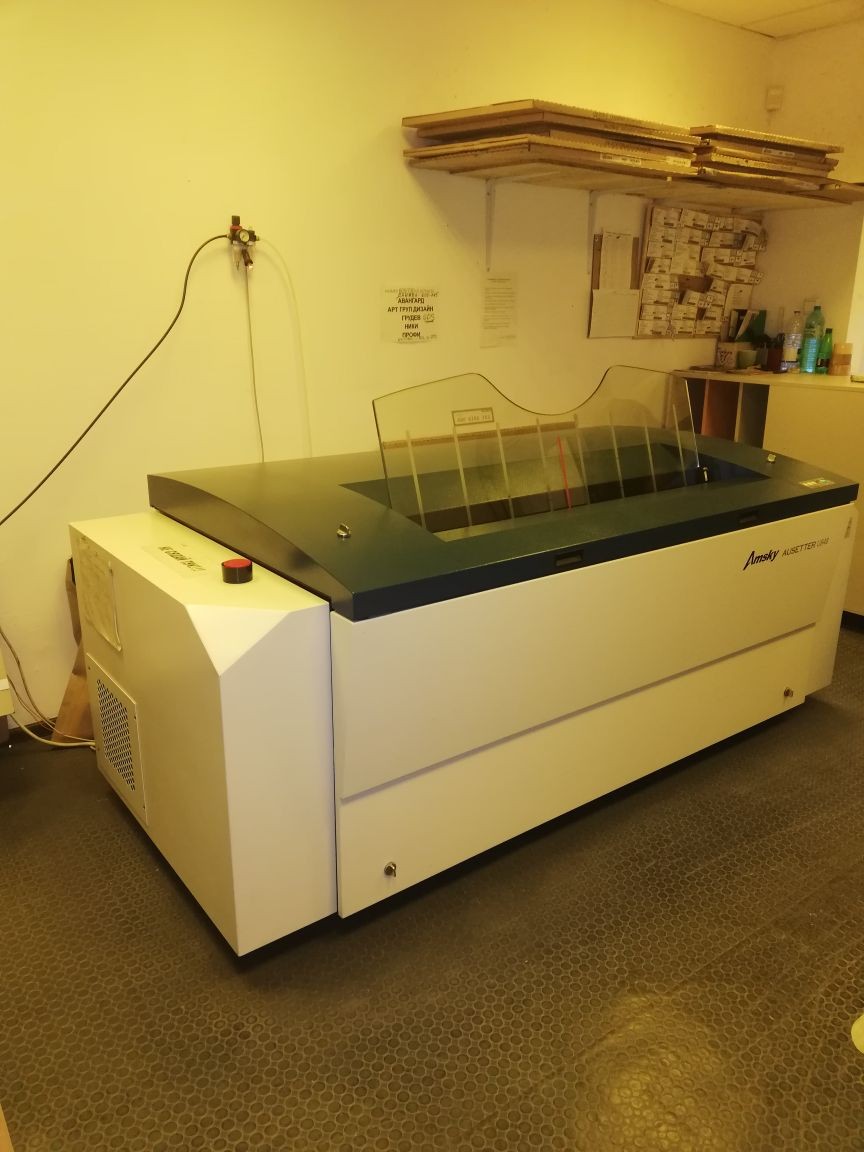

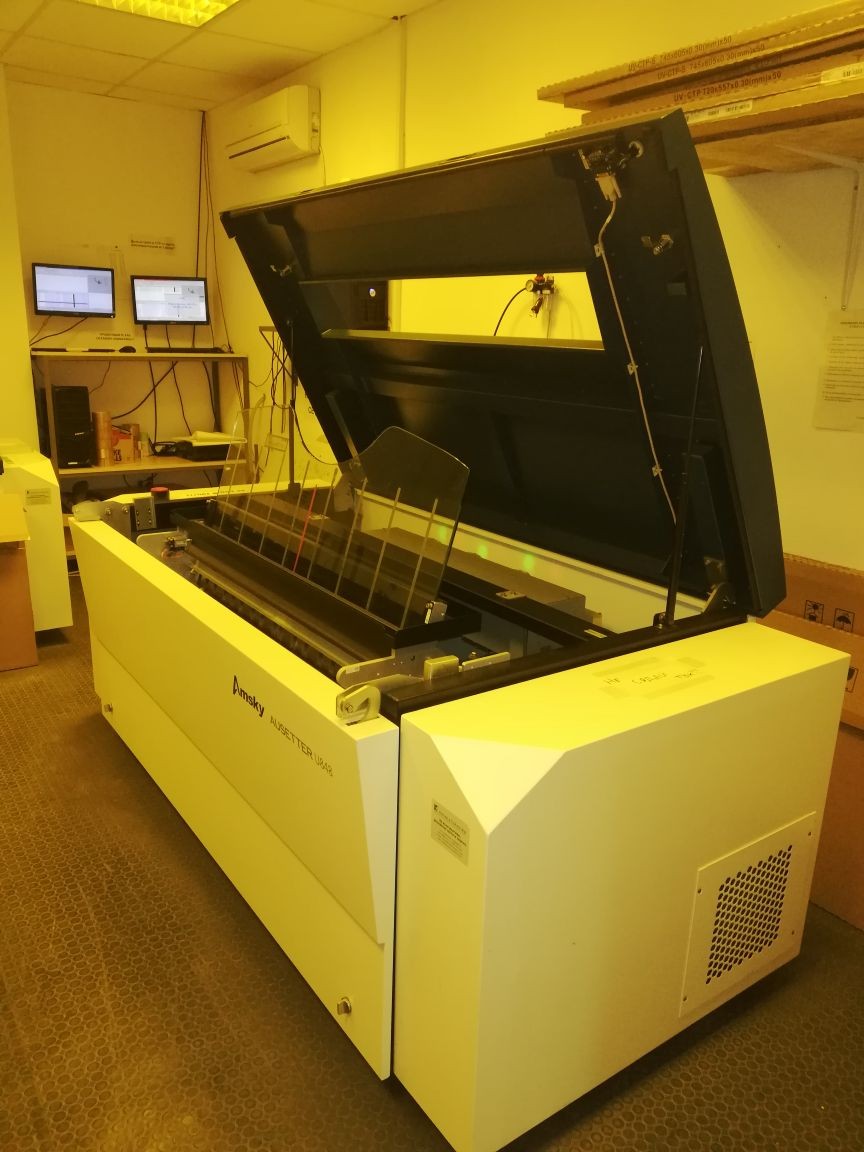

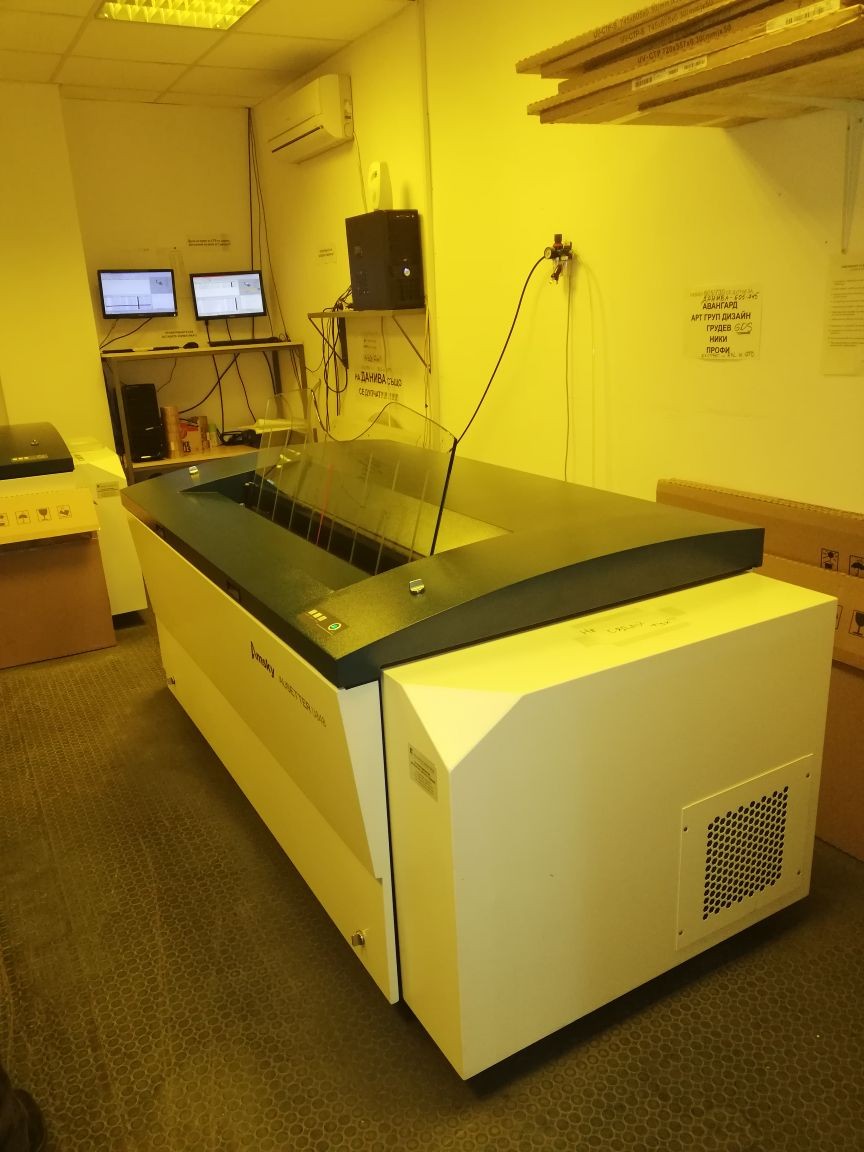

Amsky Ausetter 848 U CTcP

Computer to Conventional Plate Machine

Year 2014-09-05

Max. plate size: 1130 x 920 mm

Min. plate size: 400 x 300 mm

UV-sensitive conventional plates

Plate Thickness: 0.15 mm~0.3 mm

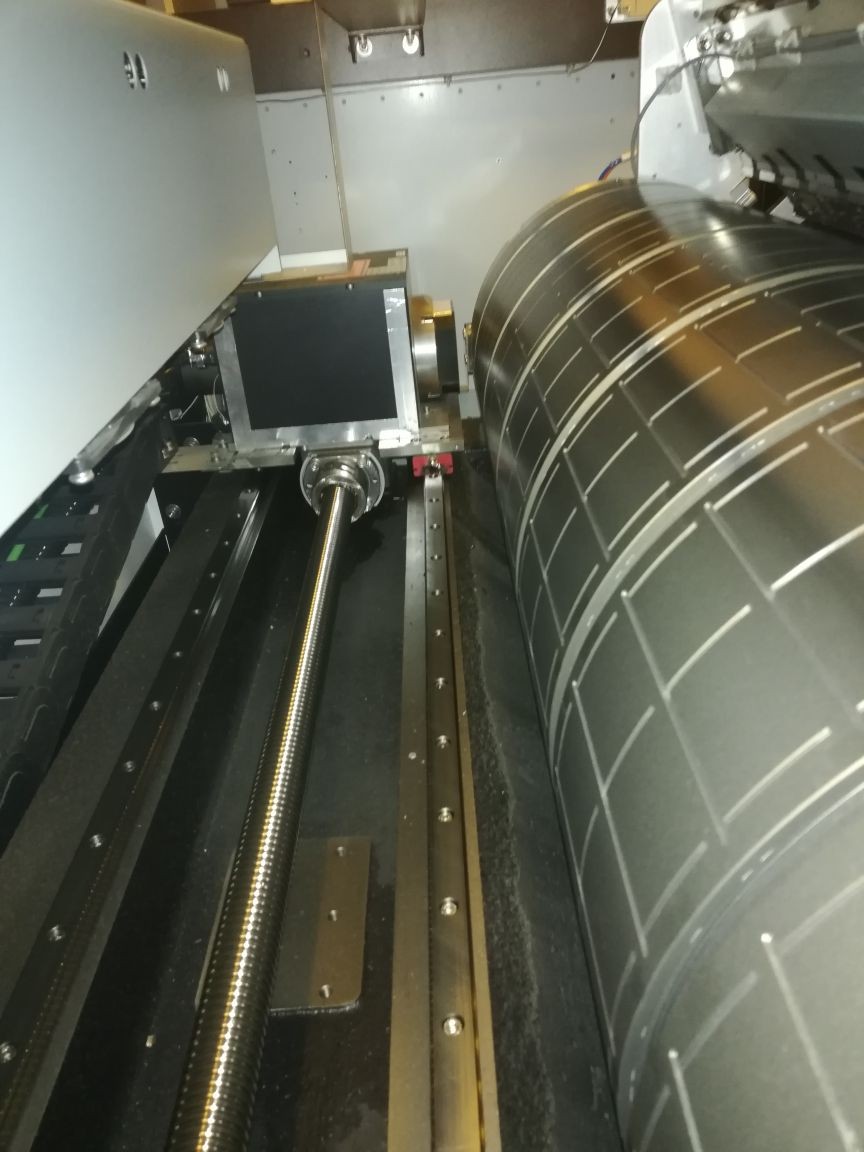

Laser head with 48 UV laser diodes

Output Speed: 22 plates 1,030×800 mm per hour

Resolution: 2,400 dpi

Max. exposing size: 1,130 × 904 mm

Repeatablity: ±5 μm (continuous exposure over four times on the same plate with a temperature of 23° and 60% RH )

Aproximately counter: 164000 exposed plates (16 pages - 61000; 8 pages - 103000)

Mashine can be tested in production.
email:[email protected]
