Trendsetter problem

[Adnan Azzam]

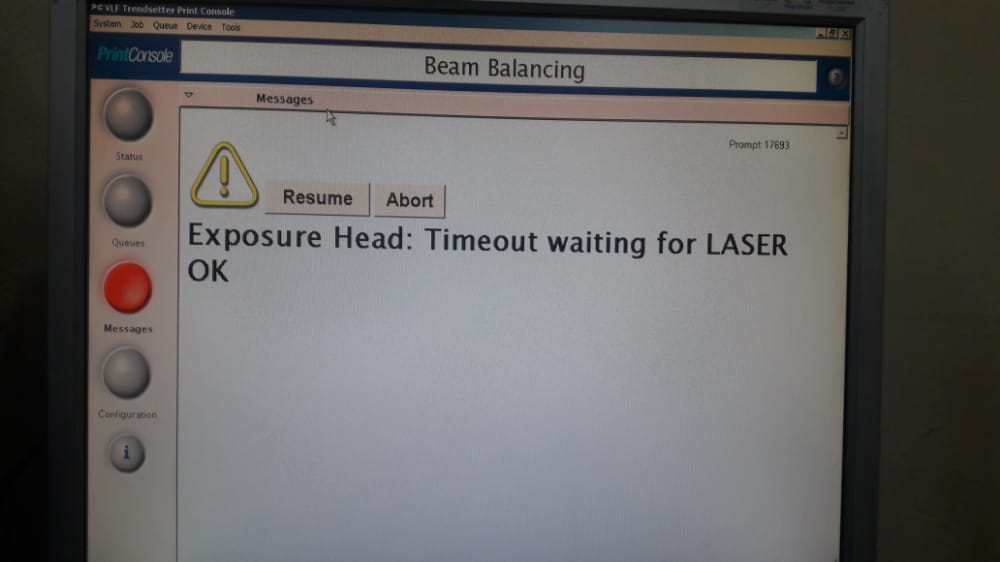

pls need help for trendsetter error beam balance not achieved
pls see attachment
regards



[ssutton503]

Perhaps this will help:

Creo CTP Firmware Error Number: 17693



[ecuagraphic]

You have error in laser head, I can check your equpment for teamviwer, We do not charge anything for the diagnostic service, we repair the head in case it is necessary.
xsegovia@ecuagraphic.com.ec



[leo]

Change laser diode (Static optic)



[Ergo]

Please check the chiller.



[panos valakos]

>>SET HEAD BPMAXERR 10
The laser has by default a value of 3 for maximum beam error.
If you increase from 3 to 10 will be okay.
But check if in case you have artifacts on plate,if not continue working with 10.

valakos.panos@gmail.com



[yachtsman]

Turn off the debris in media
