X-Y Addressability Indicator and Gradient - how to use this scale

MannyV

New member
Hi all,
Need some education here please.

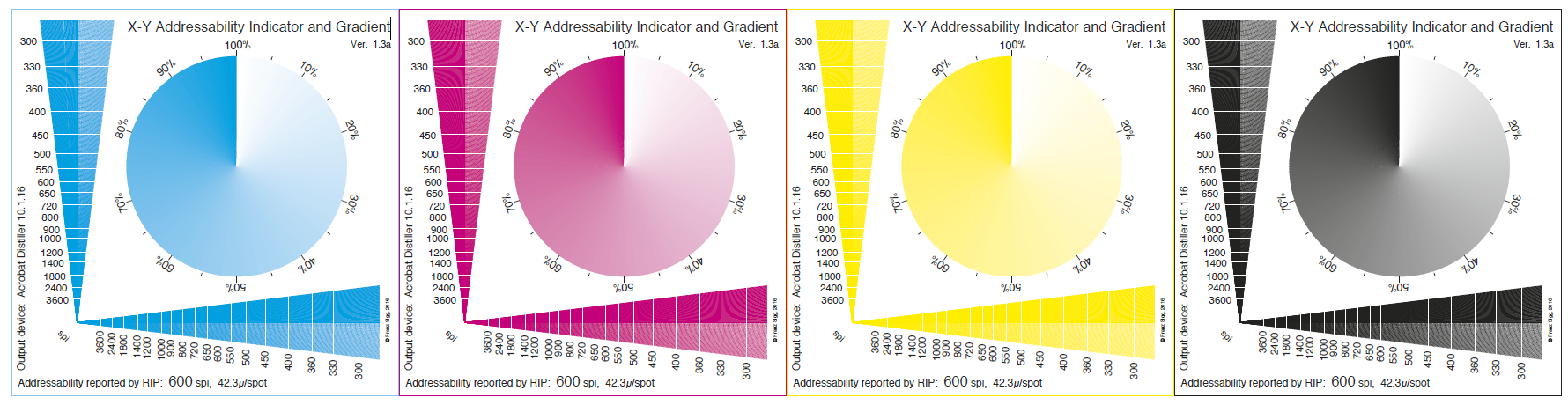

The circular part seem fairly straight forward to read and understand. How do I read and test this step wedge scale portion horizontally and vertically for test? SPI - Samples per inch?


SteveSuffRIT

Well-known member
Franz Sigg from RIT (retired, Switzerland) developed this test target.
I think after you output the file on a device, a moire pattern appears in the patch that matches the spi addressability.


Ulrich

Well-known member
SPI: Spots per Inch

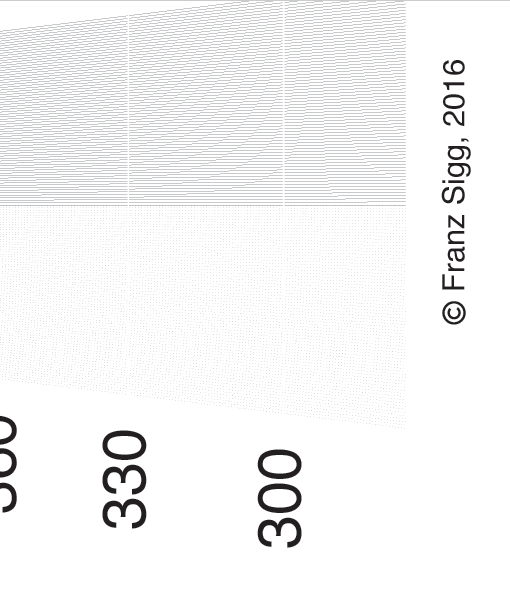

following Steves moire pattern indicating: like this in the top half at 300 (but here it is just a screenshot..., we all know it from a film strip to identify the lpi of a print...):



MannyV

New member
Thank you, very practical device to measure vendors addressability when shopping around. Reading about vendors capabilities and proving it are always more reassuring when shopping. This can a good start also for identifying root causes.

I pulled this from one of his RIT papers
Addressability Indicator. Sometimes output devices indicate a higher addressability than they mechanically produce. This target helps to determine true mechanical addressability.
