Get Nexus to fail when an RGB color/image is present in the pdf file?

[pacart]

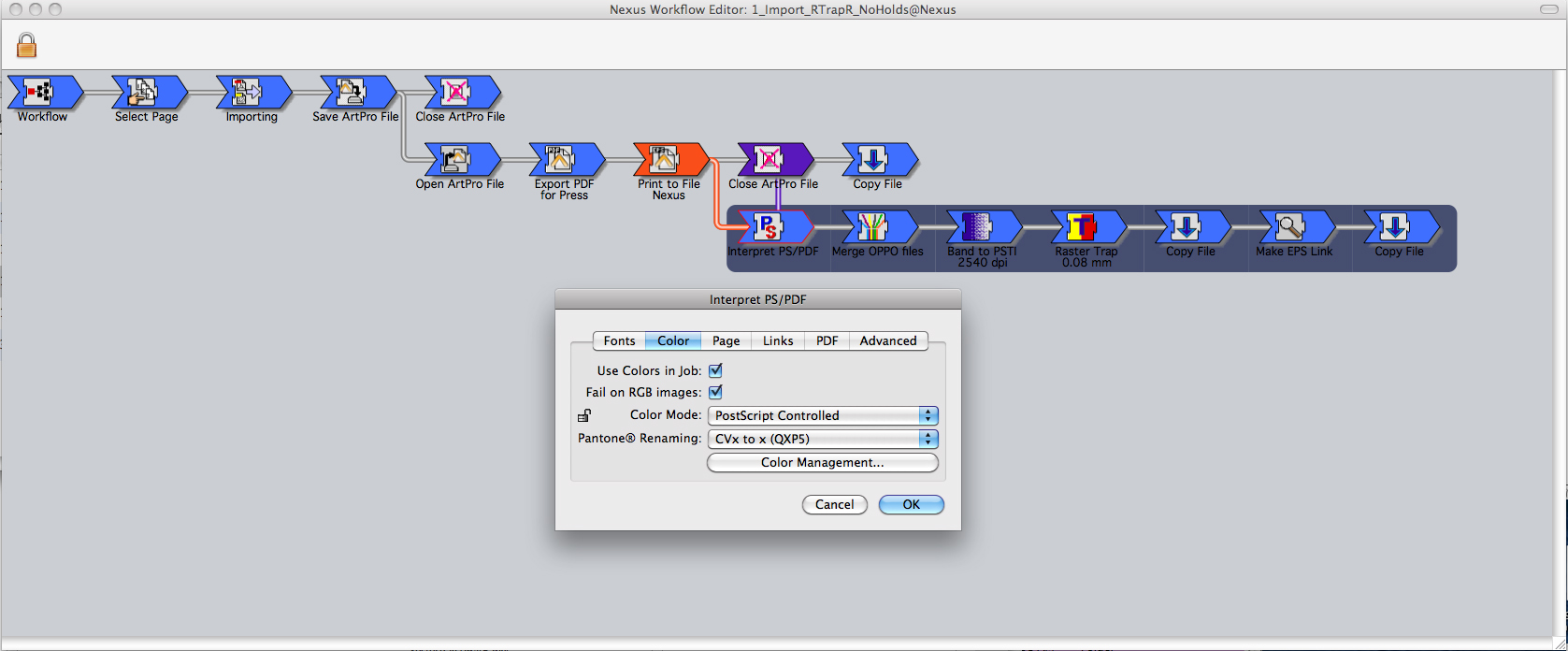

So I have Nexus Manager 9.0.3, it happens very rarely, but sometimes we have an errant RGB image/color get through into the final pdf that we rip for the plates. This obviously causes a horrible end result. I have checked the box (Fail on RGB images) shown on the attached file in my workflow, but it doesn't work.

Is there something else i need to do, or am i interpreting this option incorrectly?

Thanks for the help.

Josh



[macdevin]

I would do this with the import module.. There is a preflight option in the upper right.. Looks like a traffic light.



[pacart]

I would do this with the import module.. There is a preflight option in the upper right.. Looks like a traffic light.

I don't understand what you are saying...



[pacart]

Nevermind, I see it now. All this does is give me an error, I want it to actually stop the process. I don't usually sit and watch the files rip, if i don't see the error then there will still be a problem. But if I can get it to stop, I will know something is wrong.



[macdevin]

I don't understand what you are saying...

The screen shot that you supplied. There is a module called "Importing"
open up that module and look in the upper right of the window.. You should see the traffic light icon.



[macdevin]

Put in a "wait for OK" module after the importing.. Then make sure you tell it to Hold on error or waring...
