Horizon AC1200 collator fuse?

[MickRose]

I have an old Horizon AC1200 tower collator. It has stopped working and there seems to be no power apart from the box countdown unit near the bottom. I'd like to check the fuses but I can't see how to remove the bottom panel on the operators side. Anyone know this?



[chock]

Hi sir:

1) please before to take out the panel

2) check the FUSE: F5 of 2amp, is located in the Main transformer ETG -103B

3) then test the fuses F1+F2= 1amp

4) F3+f4=2 amp all of them located in the secondary of the main transformer ETG

Good luck, let me know any question or tech doc

Blessing

[email protected]
Mobile+WhatsApp:+505 8861 1441



[MickRose]

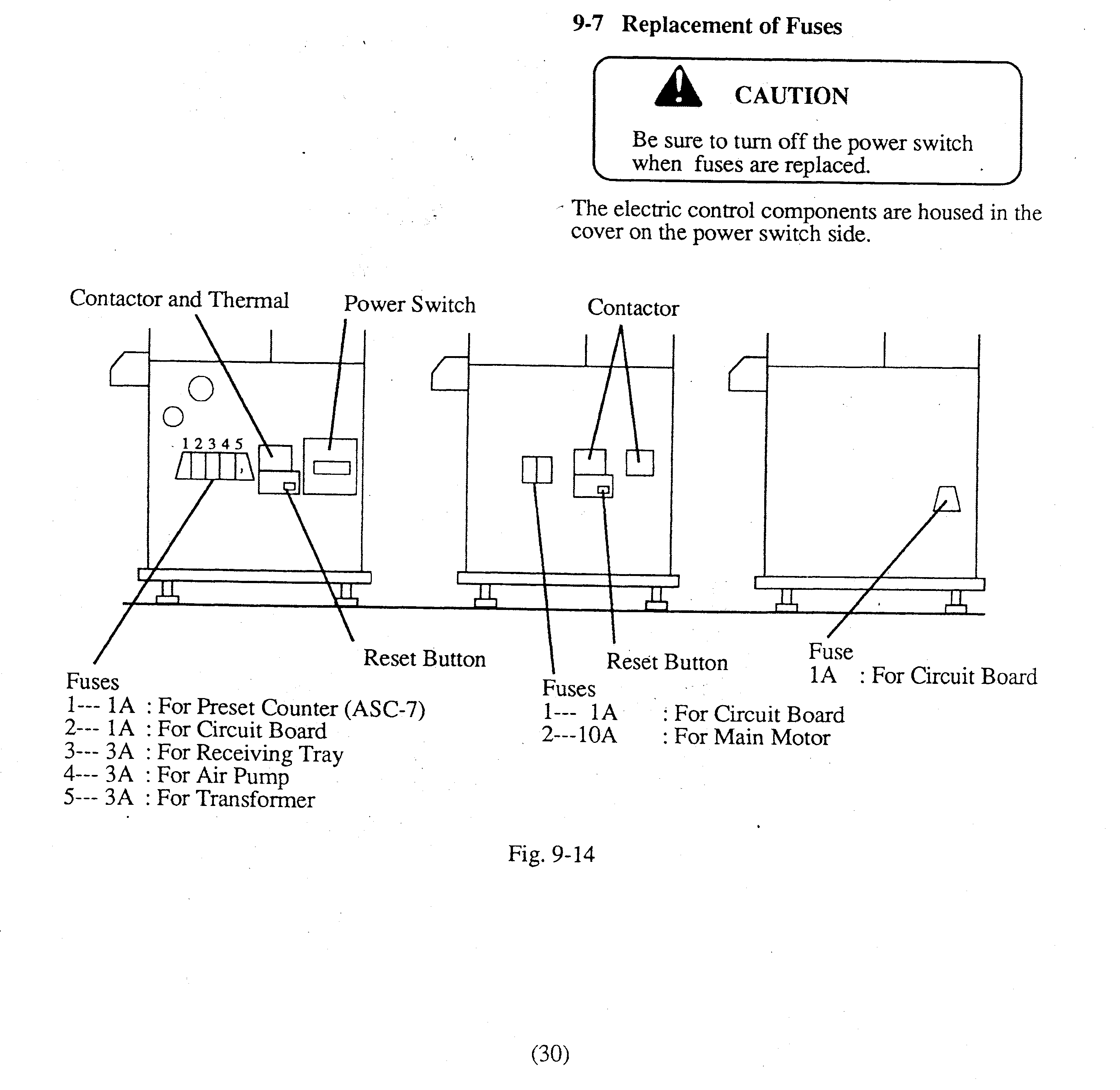

Here's the manual. It looks like the fuses are behind the bottom panel.



[chock]

Take care when you are changing the Fuses, with the Same type of fuses.

1) the same Voltages example 120Vac, or 220VAC

2) Same rating of Amps: 3amps, same tipe of Amps, NOT less,!! or more.

3) Turn Off the machine totally, for to avoid electrical discharge.

4) Test after replace, if there are NOT short-Circuit in the circuit


Blessing
