Screen EP-B101 Ethernet Converter Box / PIF interface / Pif Box

Hi,

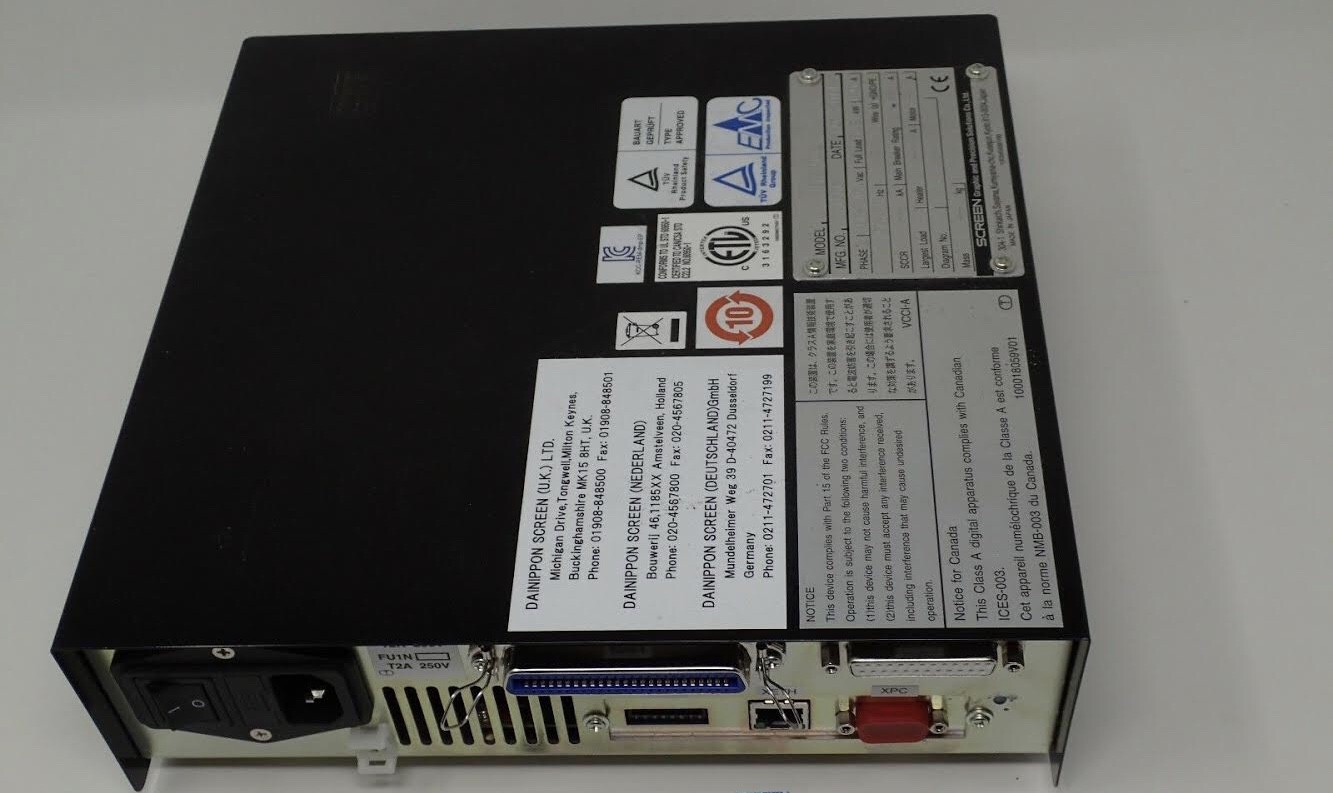

Anyone who have a User Manual for Screen EP-B101 Ethernet Converter Box / PIF interface / Pif Box, or knows how to configure / set up. Please see attached pictures
Thanks. Any help is appreciated.


Attachments

Martin Mueller

Active member
Hi Nutech Shroff,

according to the Introduction.pdf above, you can use Screen´s TrueFlow & Equios workflows and the HQ510-RIP (Harlequin).

For a current Harlequin-RIP e.g. Xitron Navigator v12 you would need a Xitron blue box interface instead.


pam_add

Well-known member
but where is the plugin for HQ510-RIP abd what the minimum version required?

Last edited:

Martin Mueller

Active member
pam_add
the device plug-in for the Screen devices is an integrated part of the HQ510-RIP. HQ510-RIP is the Screen branded version of the Harlequin RIP. The oldest HQ510-RIP I know was v5 for a Katana film setter. I hope it helps you.


munkov

New member
HQ510-RIP V10 and up versions will drive it. I didn't try it, but in official HQ510-RIP V10 brochure written ep-b101 box. I would like to try drive it with Trueflow 7.3. but cannot find patche files TF323 and TF324...
