Distortion Calculation

aqazi81

Well-known member



Hi,

Need to know which formula is correct for calculating distortion, as each one of these is calculating slightly different values.

Are these calculations from a trusted website (FTA) of from a custom written Excel spreadsheet?
Mylar base (0.007") of photopolymer relief plate (0.067") is dimensional stable and will not stretch.

Dear aqazi81, can you share the excel file. I can adjust some values and the result will be the same.

Dear aqazi81, can you share the excel file. I can adjust some values and the result will be the same.

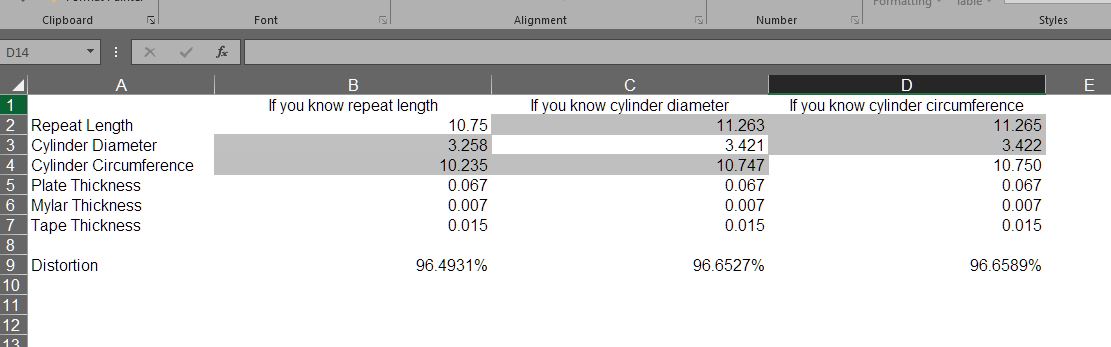

I have attached the file, the main issue is the correct amount of distortion.


Attachments

  • Distortion Calculator.zip
    8.9 KB · Views: 189
