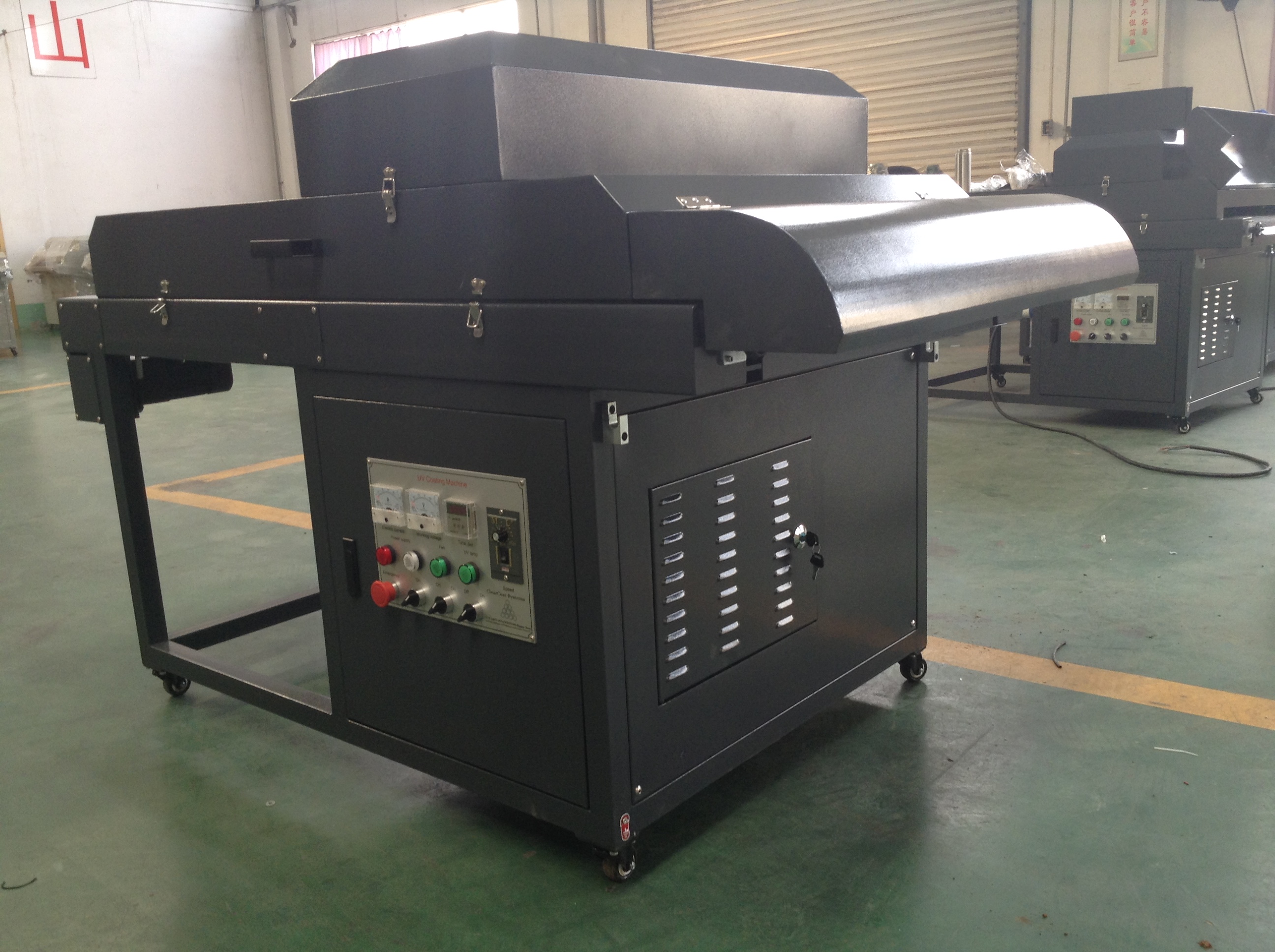

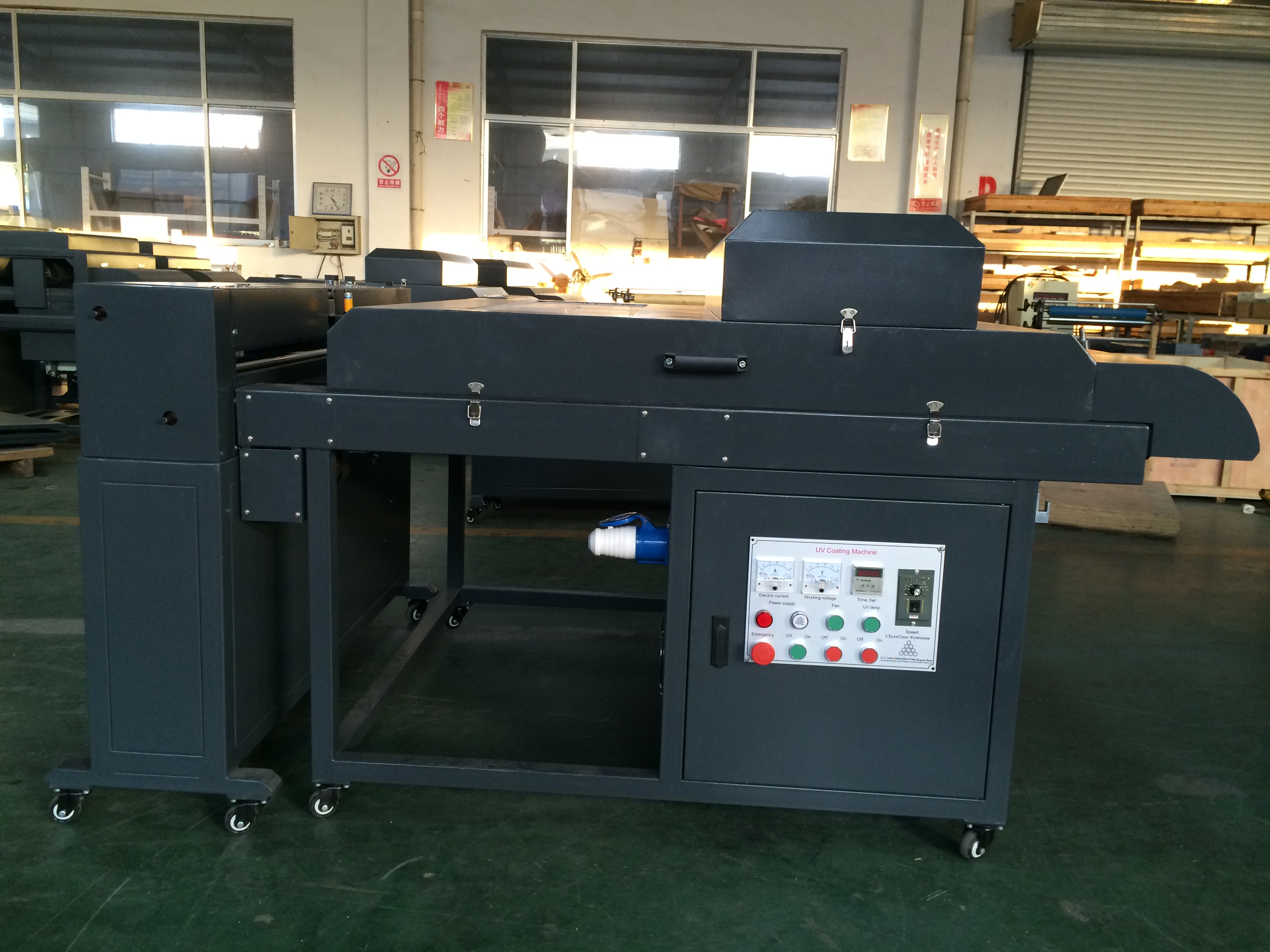

UV 650 size Vanishing machine
Coating unite
1.Accelerating by upper swing gripper mechanism, to has a high production capacity
2. Programmable logical control system assure high machine stability and low breakdown
3. The roller bearings are operate within a eccentric housing works with great stability and smoothness thus prolonging the
machine service life
4. Powerful main motor operates invariable speed
5. Independent power speed control varnishing roller can be adjusted to control the volume of the varnish used
6. Only high grade harder steel gears are used, thus ensured low breakdown rate and pro-long machine life
7.Paper counter used. to display how many work have done.
8.Paper stick inspect worked. when coating the thin paper, if the paper stick on the roller, the machine will stop automatically.
9.Can add air knife
Curing system
1. I.R. light can be adjusted in variable electric current during operation,the lamp cover placed properly,ensure the light ray on
the paper.
2. Served by powerful air exhaust fans
3. Machine is equipped with light-curtain no unnecessary light exposure is ensured
4.the cover of the UV lamp can be opened.
5.with our conveyor machine, the curing system can match the offset printing machine perfectly.
Advantages:
Suitable for offset printing,toner digital printing and HP indigo digital printing
high quality coating results.
can do the paper roll coating
can coating the wooden board, PVC,
Specification:
1.Max paper width: 650mm
2.Paper thickness: 80g at least
3.Max speed: 18m/min
Coating unite
1.Accelerating by upper swing gripper mechanism, to has a high production capacity
2. Programmable logical control system assure high machine stability and low breakdown
3. The roller bearings are operate within a eccentric housing works with great stability and smoothness thus prolonging the
machine service life
4. Powerful main motor operates invariable speed
5. Independent power speed control varnishing roller can be adjusted to control the volume of the varnish used
6. Only high grade harder steel gears are used, thus ensured low breakdown rate and pro-long machine life
7.Paper counter used. to display how many work have done.
8.Paper stick inspect worked. when coating the thin paper, if the paper stick on the roller, the machine will stop automatically.
9.Can add air knife
Curing system
1. I.R. light can be adjusted in variable electric current during operation,the lamp cover placed properly,ensure the light ray on
the paper.
2. Served by powerful air exhaust fans
3. Machine is equipped with light-curtain no unnecessary light exposure is ensured
4.the cover of the UV lamp can be opened.
5.with our conveyor machine, the curing system can match the offset printing machine perfectly.
Advantages:
Suitable for offset printing,toner digital printing and HP indigo digital printing
high quality coating results.
can do the paper roll coating
can coating the wooden board, PVC,
Specification:
1.Max paper width: 650mm
2.Paper thickness: 80g at least
3.Max speed: 18m/min
