Versant 280 paper creasing

NorwoodPress

Well-known member

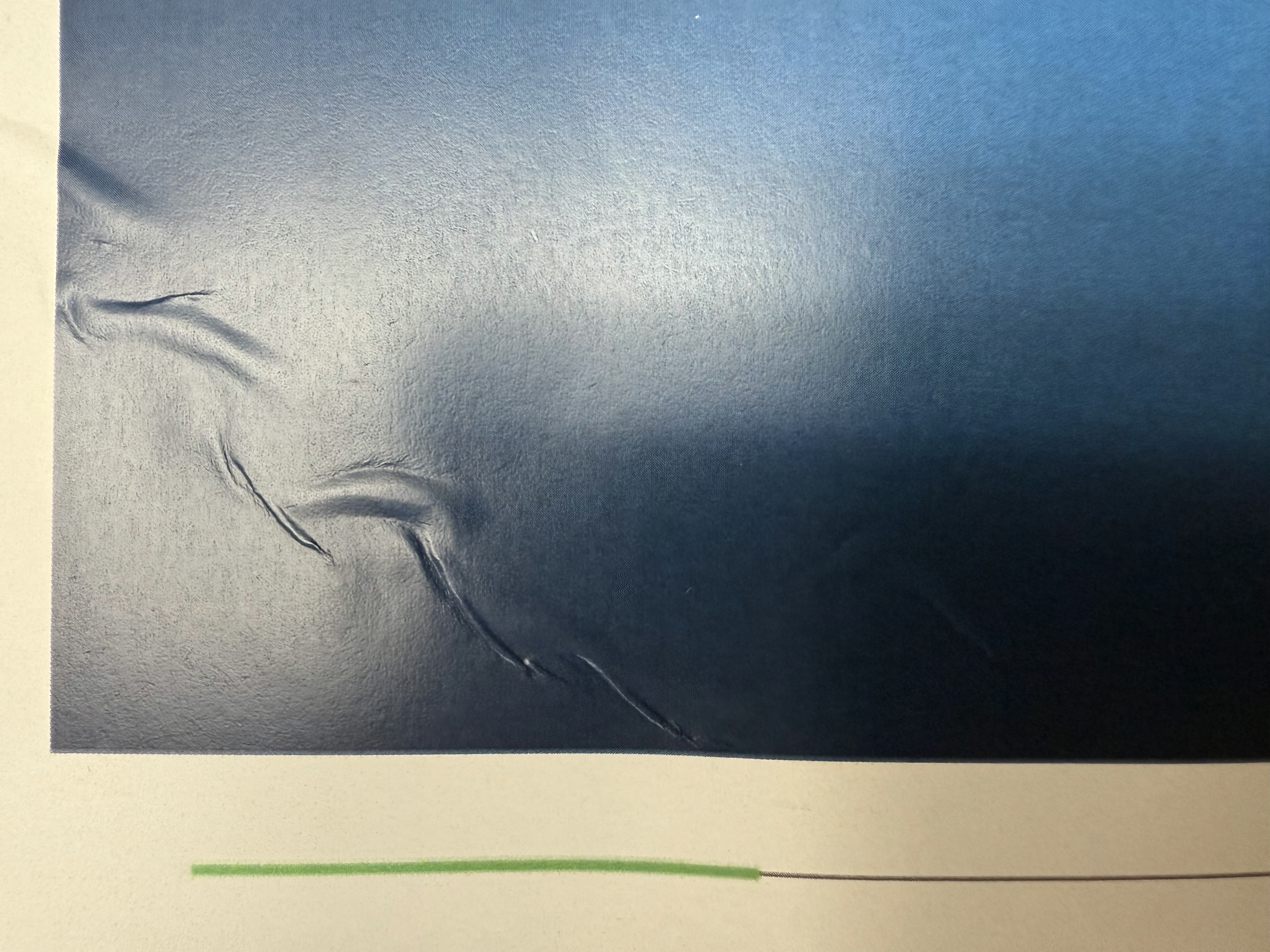

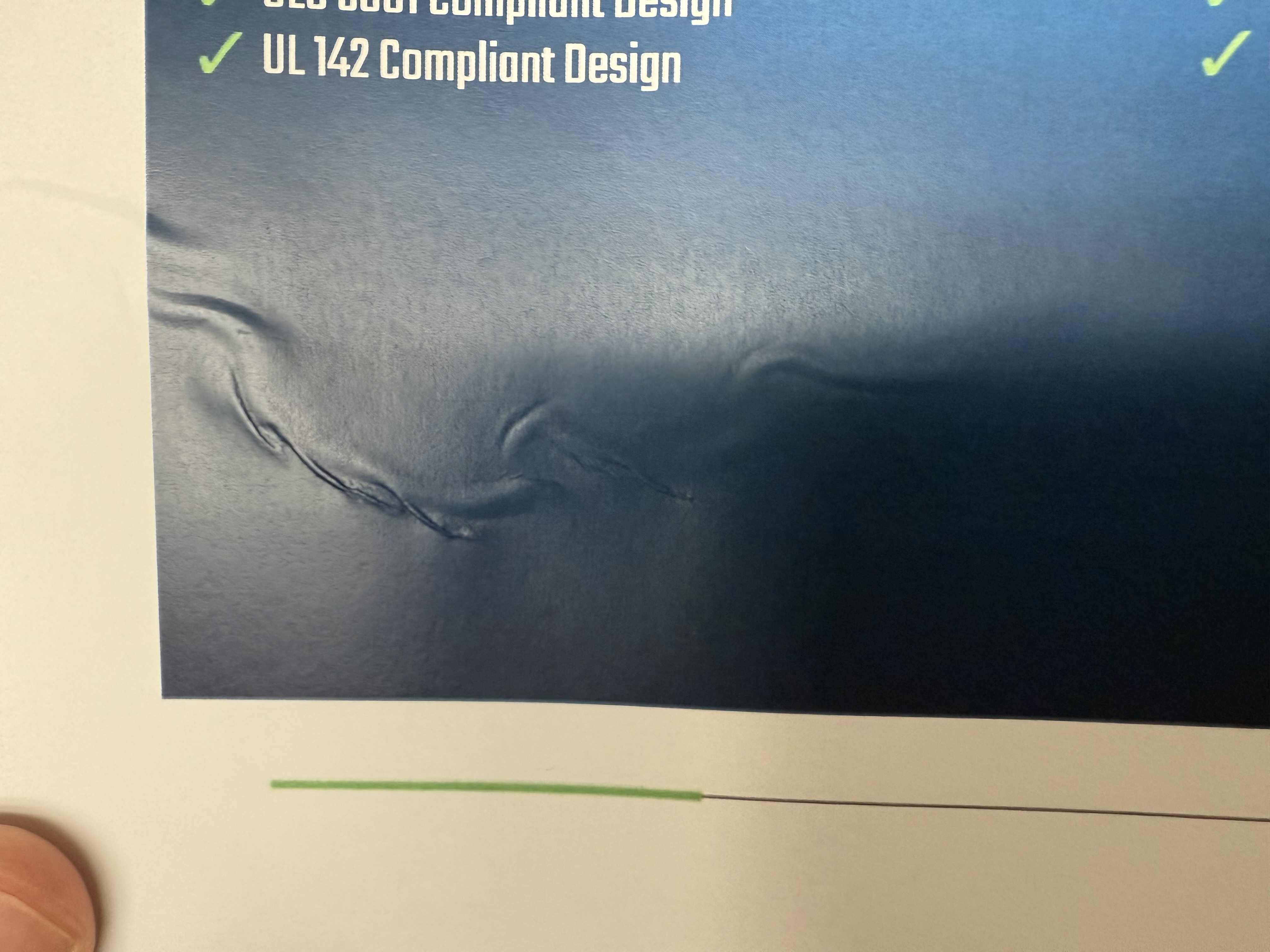

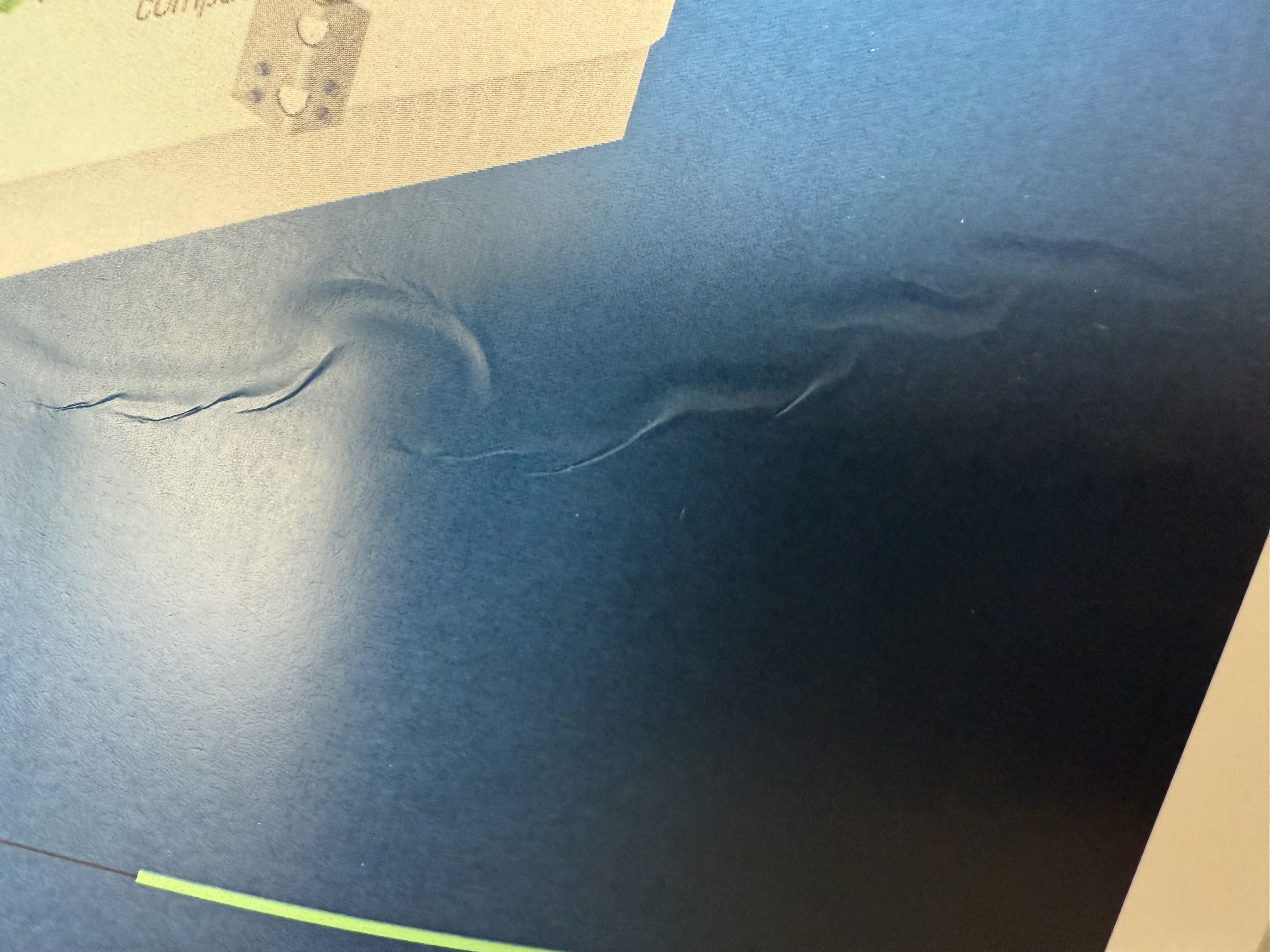

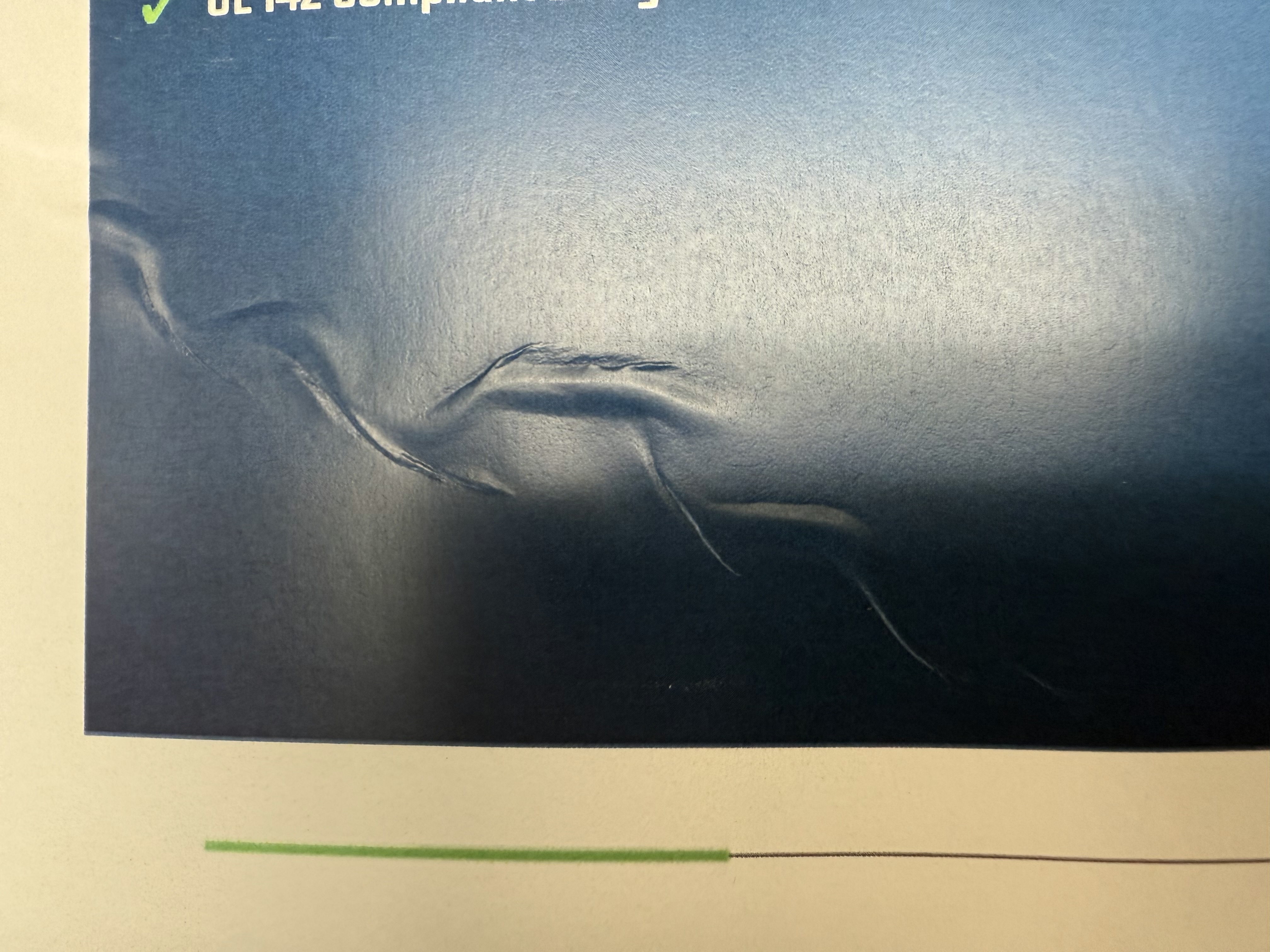

Does anyone else ever get this type of creasing marks on their versant 280 when printing on 130gsm-170gsm silk SRA3 paper (see photos) only affects bottom right corner. I have the fuser temperature set low. Prior to printing the paper doesn’t have any crease marks and I have tried two different brands of paper. It doesn’t happen on every sheet, sometimes it inconsistent and then another time it’s every sheet.


Attachments

  • IMG_1782.jpeg
    2.3 MB · Views: 279
  • IMG_1781.jpeg
    2.6 MB · Views: 1,142
  • IMG_1784.jpeg
    2 MB · Views: 1,232
  • IMG_1783.jpeg
    2.9 MB · Views: 276
I had very similar marks on a 180.
Once unit has cooled down, take a look at the Slip Sheet on Fuser Heat Belt
It may be folding up underneath the belt and coming apart.
